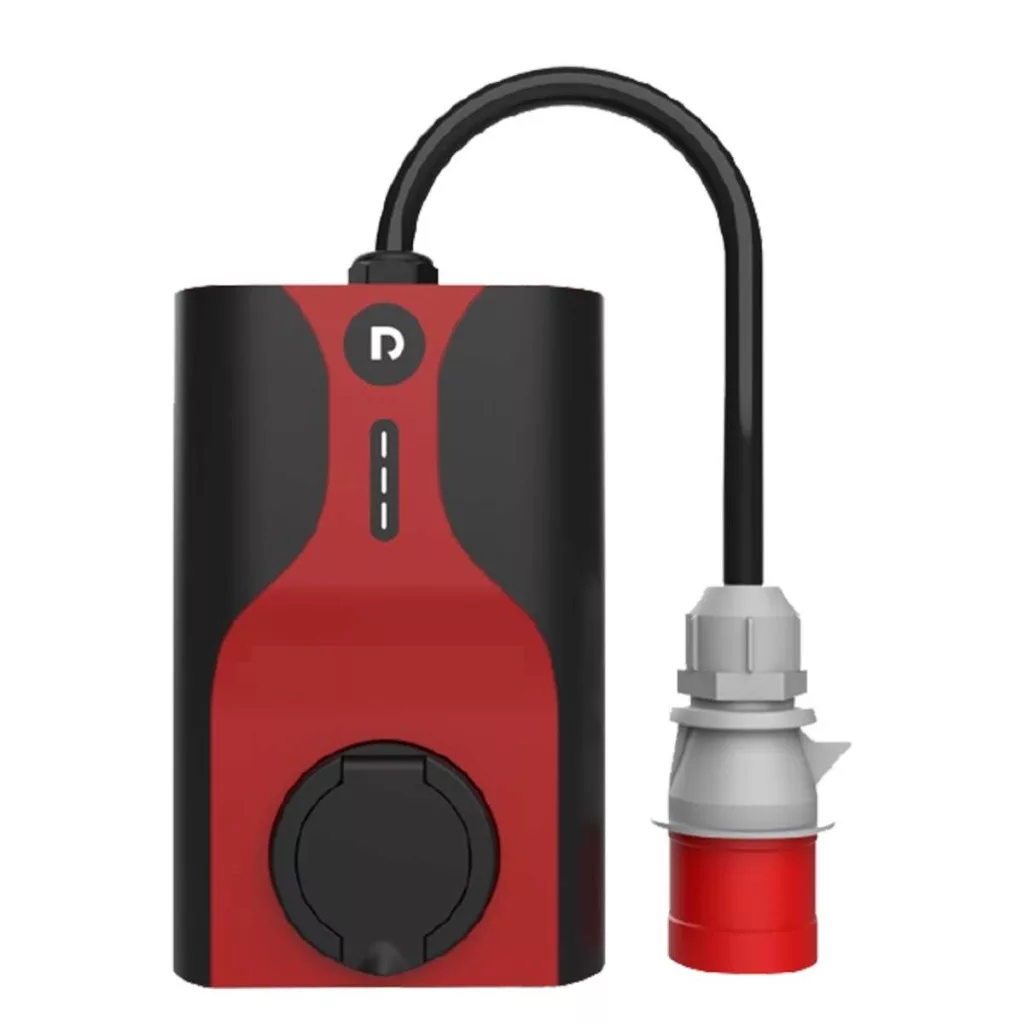

Raedian NORA AC Wallbox - 11kW | 3x16A | Type 2 | - Three-phase (3x16A) Wallbox / portable electric car charger | 5m cable - Red
Raedian NORA AC Wallbox - 11kW | 3x16A | Type 2 | - Three-phase (3x16A) Wallbox / portable electric car charger | 5m cable - Red
540
NEW

Raedian NORA AC Wallbox - 11kW | 3x16A | Type 2 | - Three-phase (3x16A) Wallbox / portable electric car charger | 5m cable - Red

Wallbox / portable electric car charger that can be fitted into a standard 11Kw 3-phase (3x16A) plug.

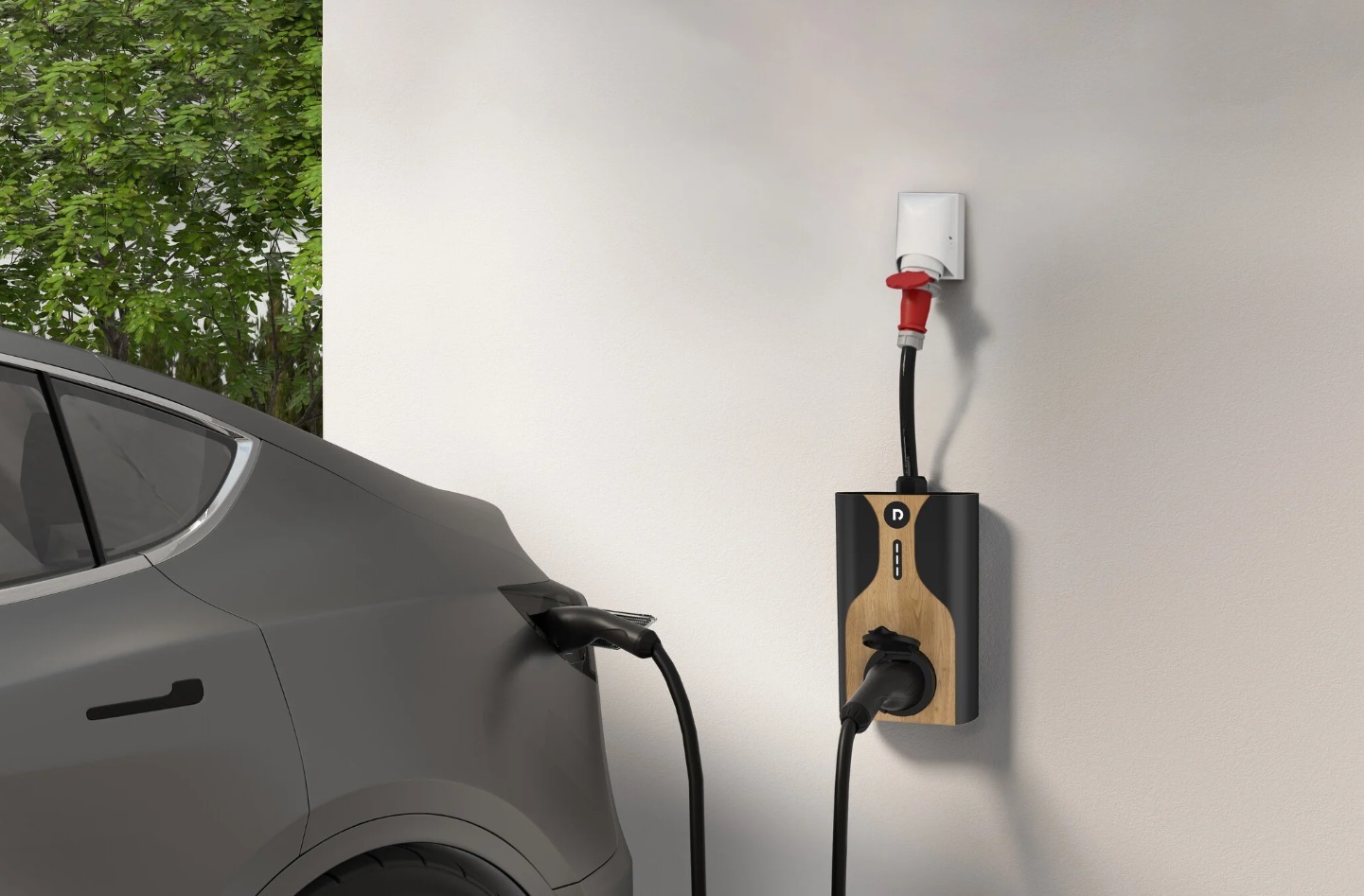

It combines the advantages of installed wallboxes (e.g. WiFi control) and the portability characteristic of portable EV chargers, as it only needs to be connected to the established wall power source.
- IP65 waterproof (submersible)
- Compatible with all cars with a Type 2 connector. The charging time depends on the car's on-board inverter.

Warranty 2 years
Brand RAEDIAN

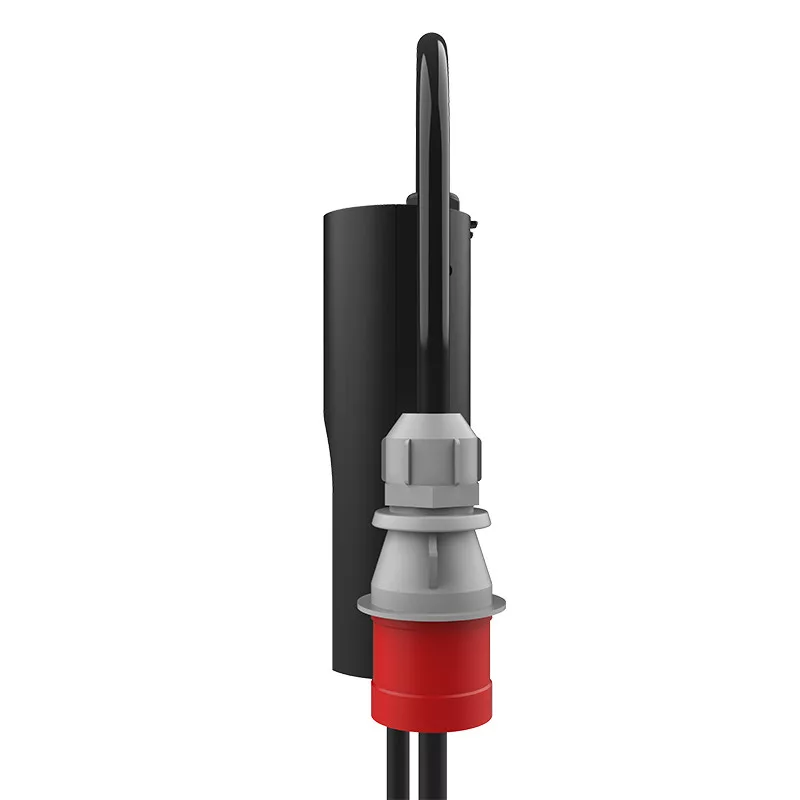

Input phase 3 phase (3x16A) standard 11Kw, 3 phase connector
Color Red / Black
Controllability With Raedian App
Connection Wi-Fi & Bluetooth
Charging indicator Running LED on the front of the box
Output power Max. 11Kw (Can be adjusted downwards in the App)
Input voltage 380 Volt
Input phase 3 phase (3x16A) standard 11Kw, 3 phase connector
Charging cable length 5 meters
Charging cable diameter 13.5mm
Operating temperature range -25°C to +55°C
Storage temperature range -40°C to +80°C
Water resistance level IP65, IK10
Fire resistance grade UL94-V0
Electric car connection standard Type 2
Size 260 x 168 x 86 mm
Weight 2100 gr
Compliance standards CE, TÜV, CB, UKCA, EN 62752: 2016+A1 IEC 61851
Downloadable documents

User guide

Product presentation

Installation Guide

Package contents

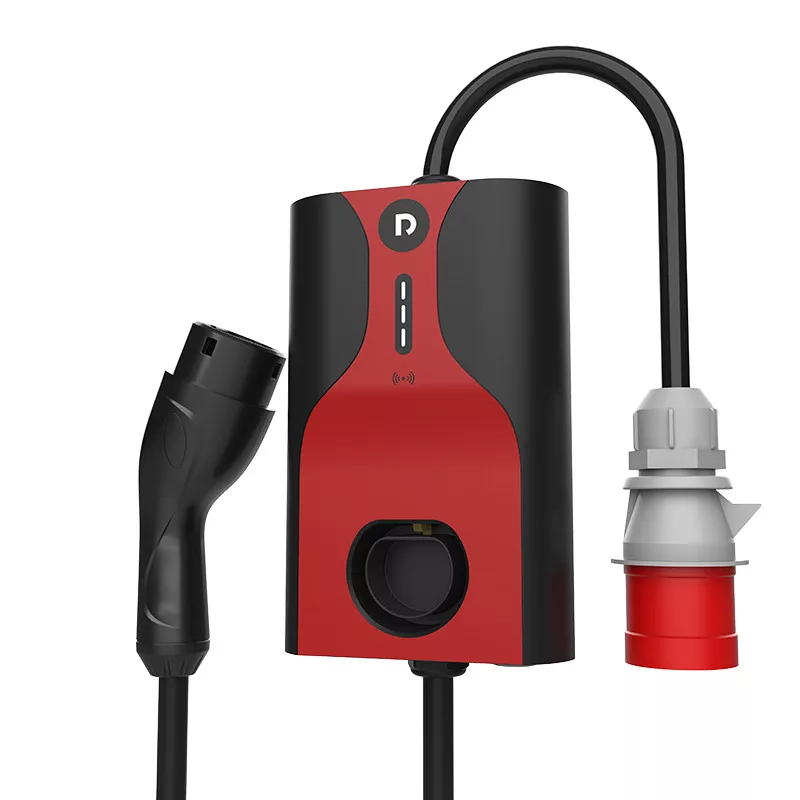

- Raedian NORA 11kW AC EV charger, equipped with 5m cable + Type 2 connector

- 2 RFID cards

- 1 wall bracket

- screws + dowel

In stock. Delivery: 3-9 days - depend on your country.
540
Details

Raedian NORA - Wallbox and portable Electric Car charger in one

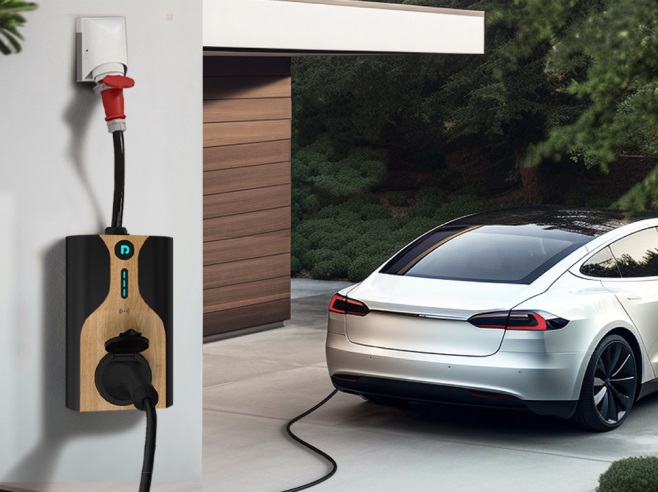

It combines the advantages of installed wallboxes (e.g. WiFi control) and the portability typical of EV chargers that can be plugged into a wall socket, since you just have to plug it into the standard 11Kw wall socket and you can use it!


Flexible load protection
Flexible power setting to ensure load safety and avoid tripping.


SMART HOME charging using the APP
The complete control of the Wallbox and the monitoring of the charging is done using the RAEDIAN App. with the help of the app, you can also easily set a charging schedule, so you can charge your car outside of peak hours.

You can find the applications here:



Adaptable to any network supply
You can use any conversion adapter, so you can use it anywhere, with any mains power source (3.7Kw - 22Kw) and any socket (either three or one phase)!

In this product you will find the standard 11kw adapter, but you can convert it any way you like:
22Kw - 11Kw (22Kw for three phases - 11Kw for three phases)
3.7Kw - 11Kw (from one phase to three phases)
7Kw - 11Kw (from one phase to three phases)


Safe to use in all locations. Readian NORA is prepared for all security-related problems:

  • Waterproof
  • Lightning protected
  • Dustproof
  • Short circuit protected
  • Protection against leakage current
  • Protected against electrical overload
  • Protected against voltage drop
  • Protected against overheating
  • Checking the existence of grounding
  • Emergency stop button
  • Protected against overcharging

Charging can be started in 3 ways
On the App, you can set which way charging starts after connecting the car:

plug & charge: without special permission, when a charger is connected to the car, charging starts
With RFID card: by swiping the attached Proxy card (RFID card).
Via the App: Charging on the App is enabled, at the start of each charge



The NORA Smart EV charger is weatherproof, shockproof and waterproof with IP65 rating, suitable for various weather conditions. They are IK10 certified to withstand harsh conditions.



Presentation:

Set up the Application in a few simple steps:


How to Use the App:



Info
Delivery:
3-5 days
Warranty:
24 hónap
Manufacturer:
Raedian
product_id:
Raedian Portable EV charger
shipping:
1
GTIN:
6976558391089
Max. teljesítmény:
11kW
Fázis:
3 x 16A
Irányítás App-pal:
Igen
Csatlakozó kábel típus:
Type 2
Irányítás RFID kártyával:
Igen
Szín:
Piros / Fekete
Rögzítési mód:
11Kw-os fali aljzat
product_type:
Portable EV charger
google_product_category:
Electric Vehicle Charging
Szállítási idő:
1
