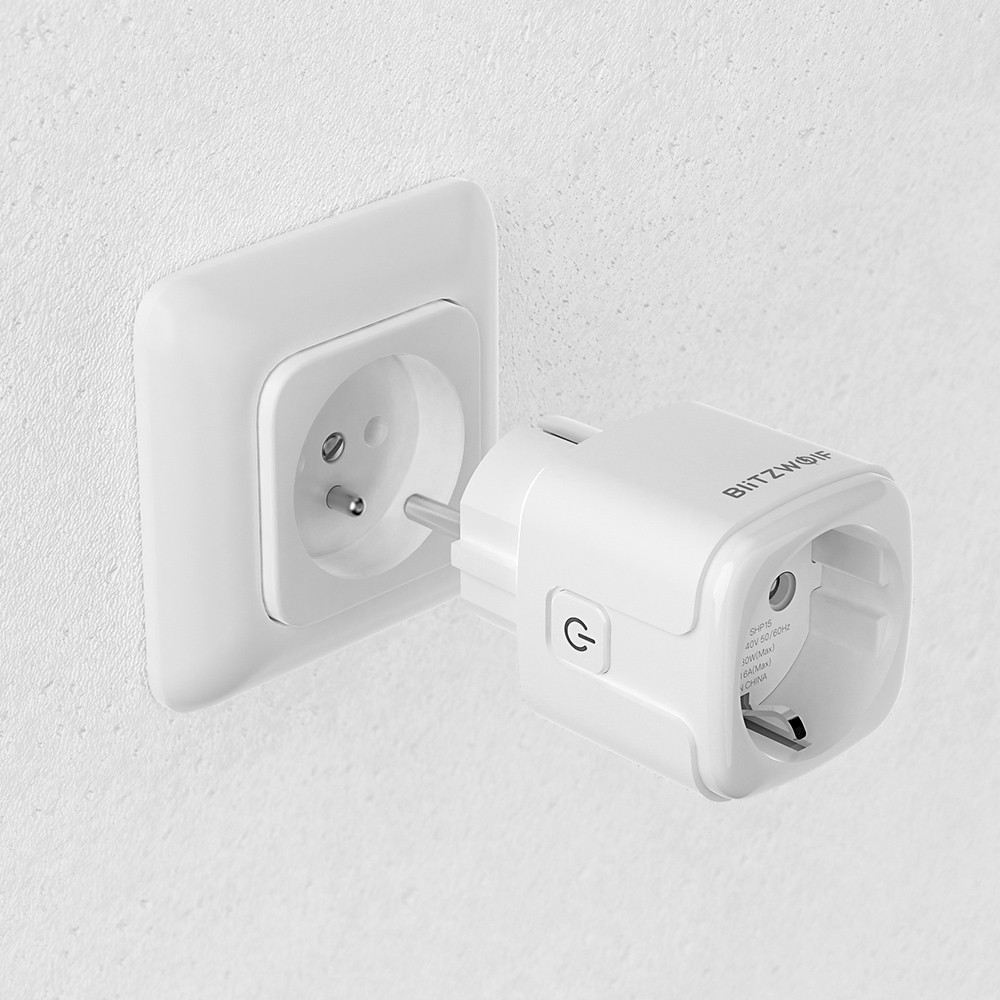

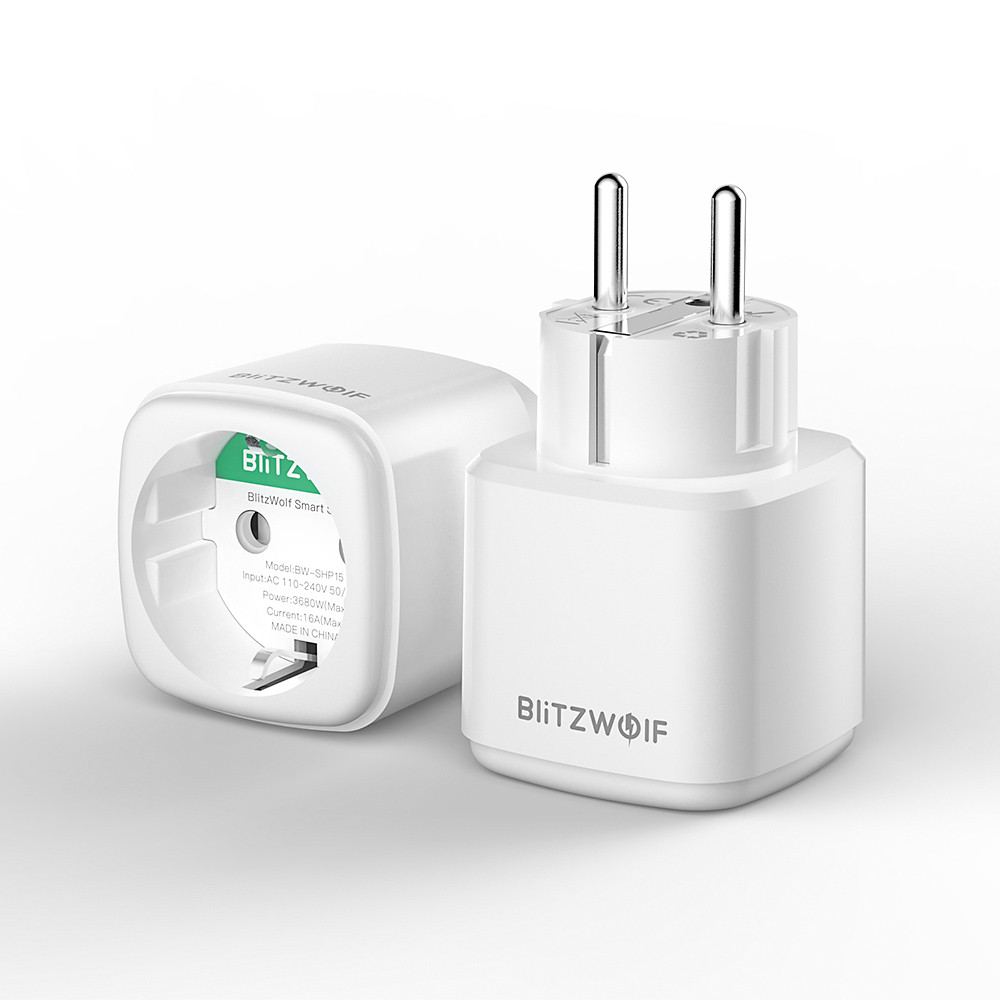

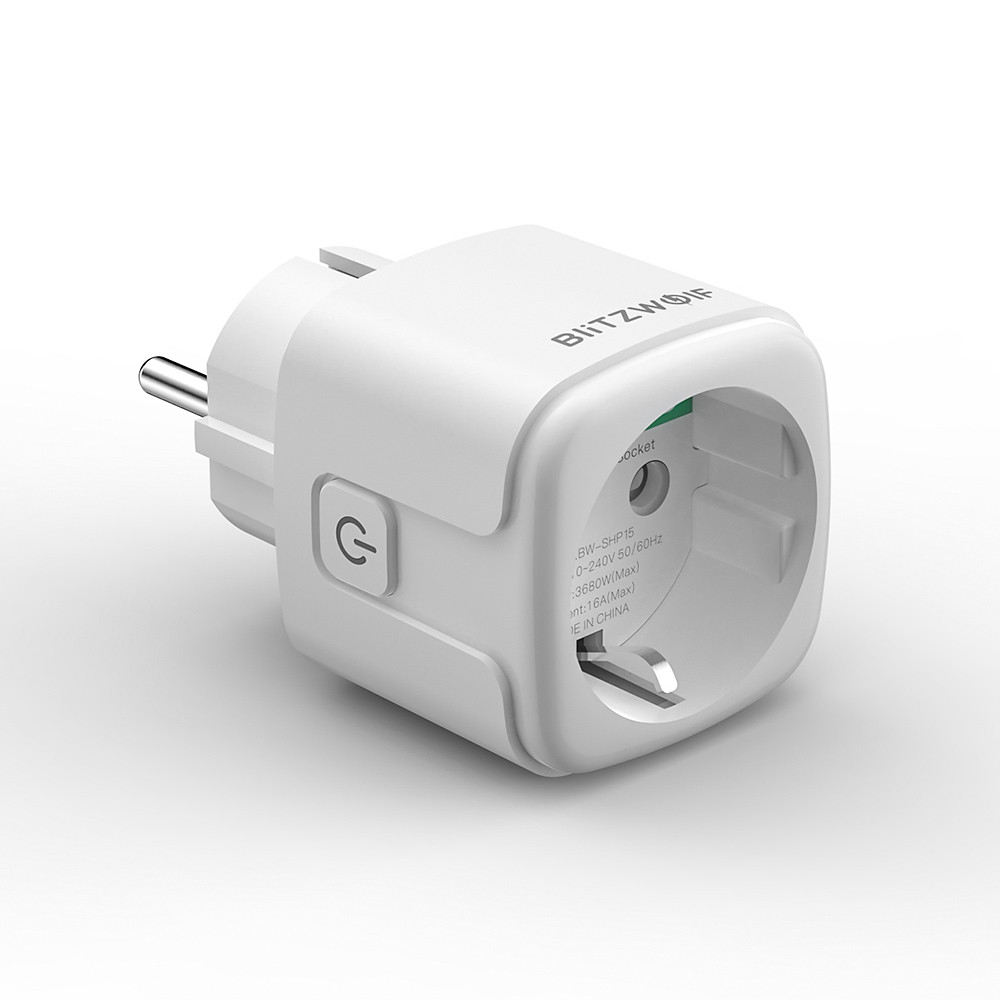

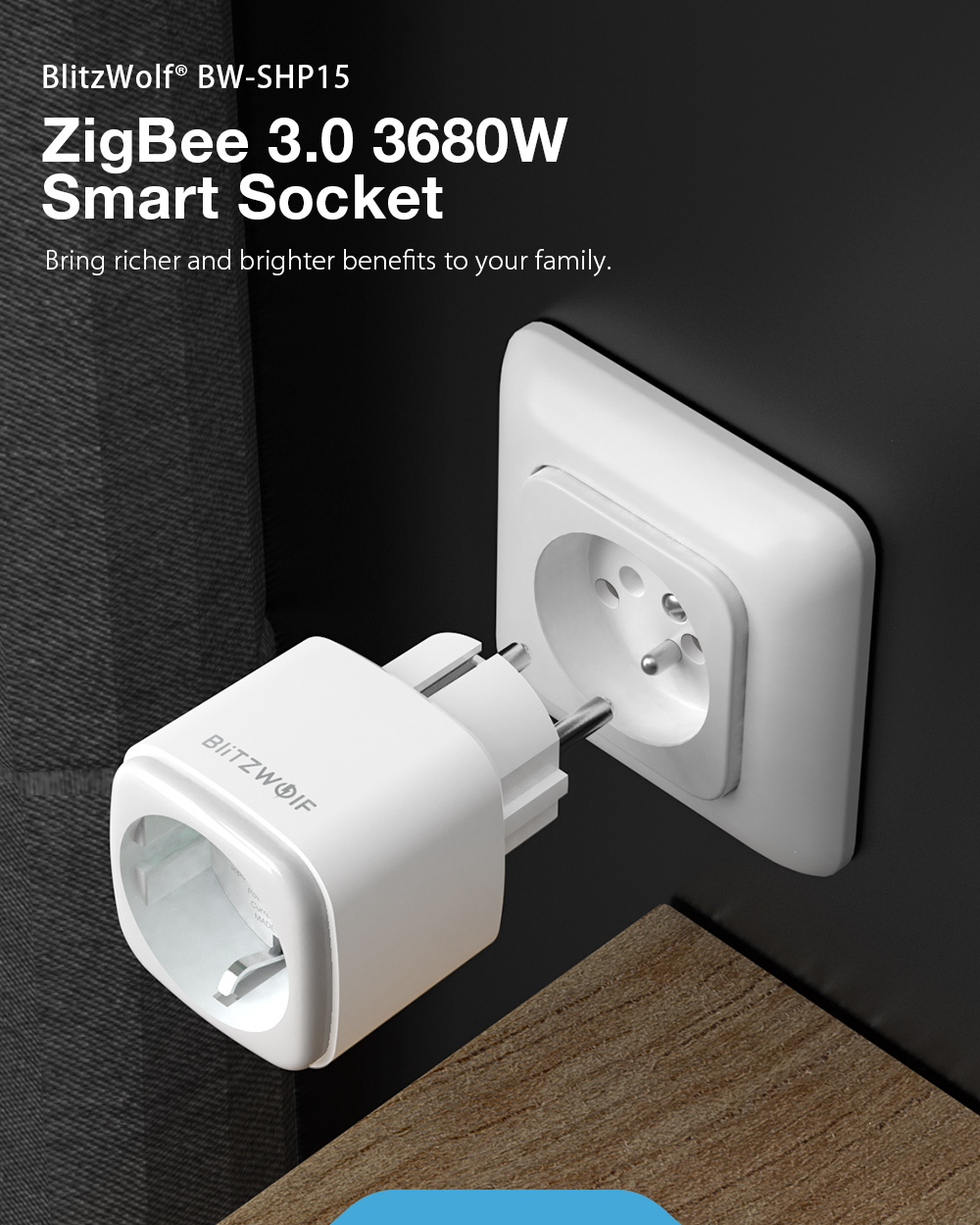

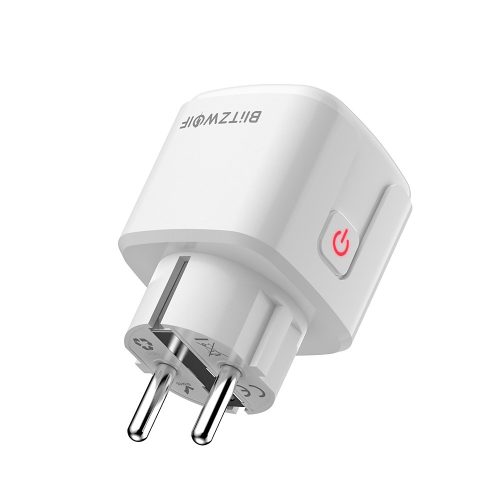

Blitzwolf® BW-SHP15 ZigBee 3.0 Smart Socket - 220V; 16; can integrate with Amazon Echo, Google Home and IFTTT.

Name: Blitzwolf® BW-SHP15 ZigBee 3.0 Smart Socket - 220V; 16; can integrate with Amazon Echo, Google Home and IFTTT.
Brand: Blitwzolf
Price: 32 EUR
Availability: InStock
Rating: 4 (1 reviews)

4 (1 opinion)

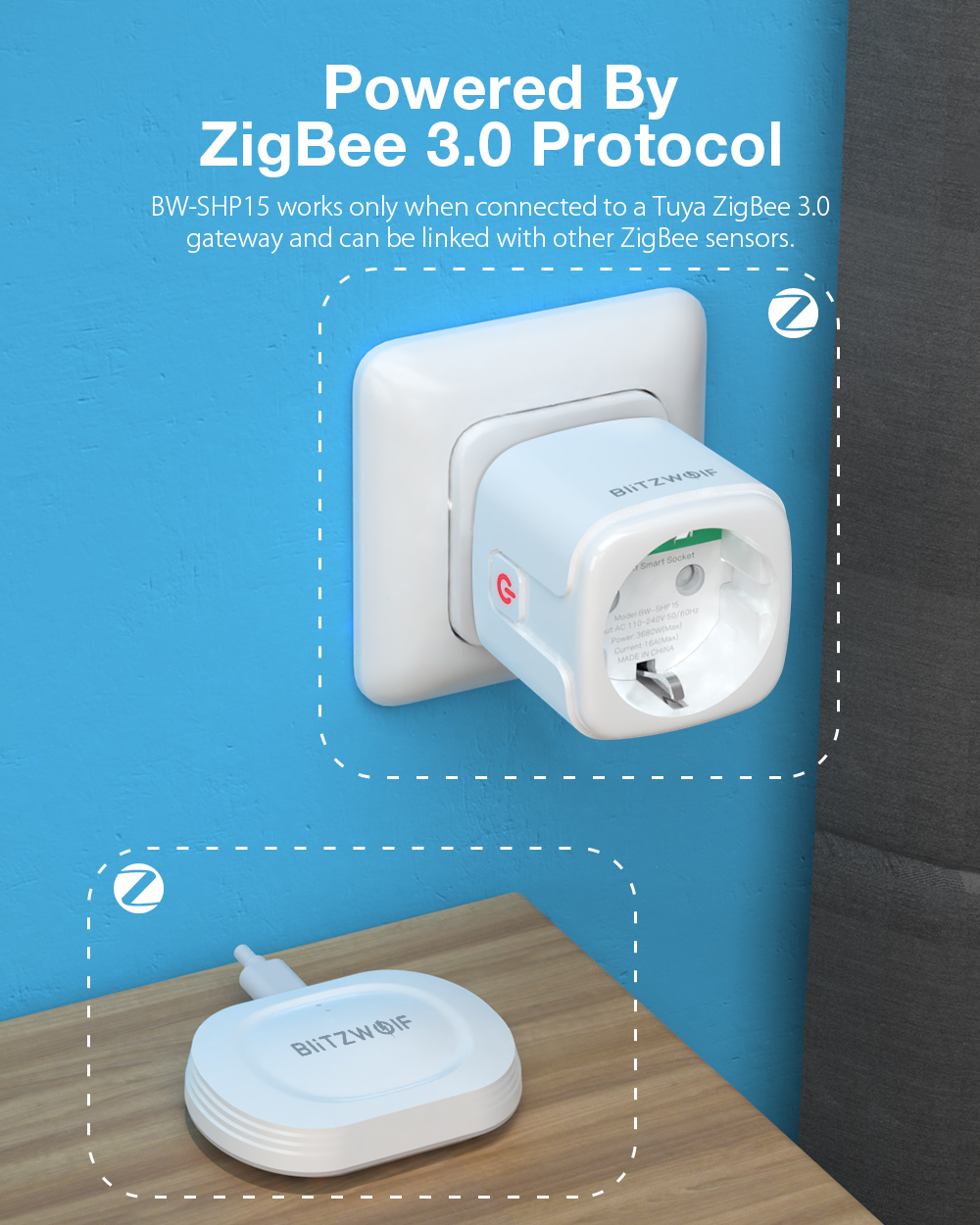

Attention! The Blitzwolf BW-SHP15 can only be used via the ZigBee 3.0 gateway which you can purchase here.

Control any device with your phone with the smart socket on the Blitzwolf® BW-SHP15. From anywhere, via the Internet.
It can also be used to control a 3680 watt device, and we can even follow the consumption with the application!

Input Voltage & Current	240V x 16 Amper (3680W)
Connection Type:	Zigbee 3.0
Voice Conrol:	Amazon Alexa, Google Assistant
APP Control:	BlitzWolf APP, TuyaSmart APP, Smart Life APP
Operating Temperature:	0℃-40℃ RH≤80%

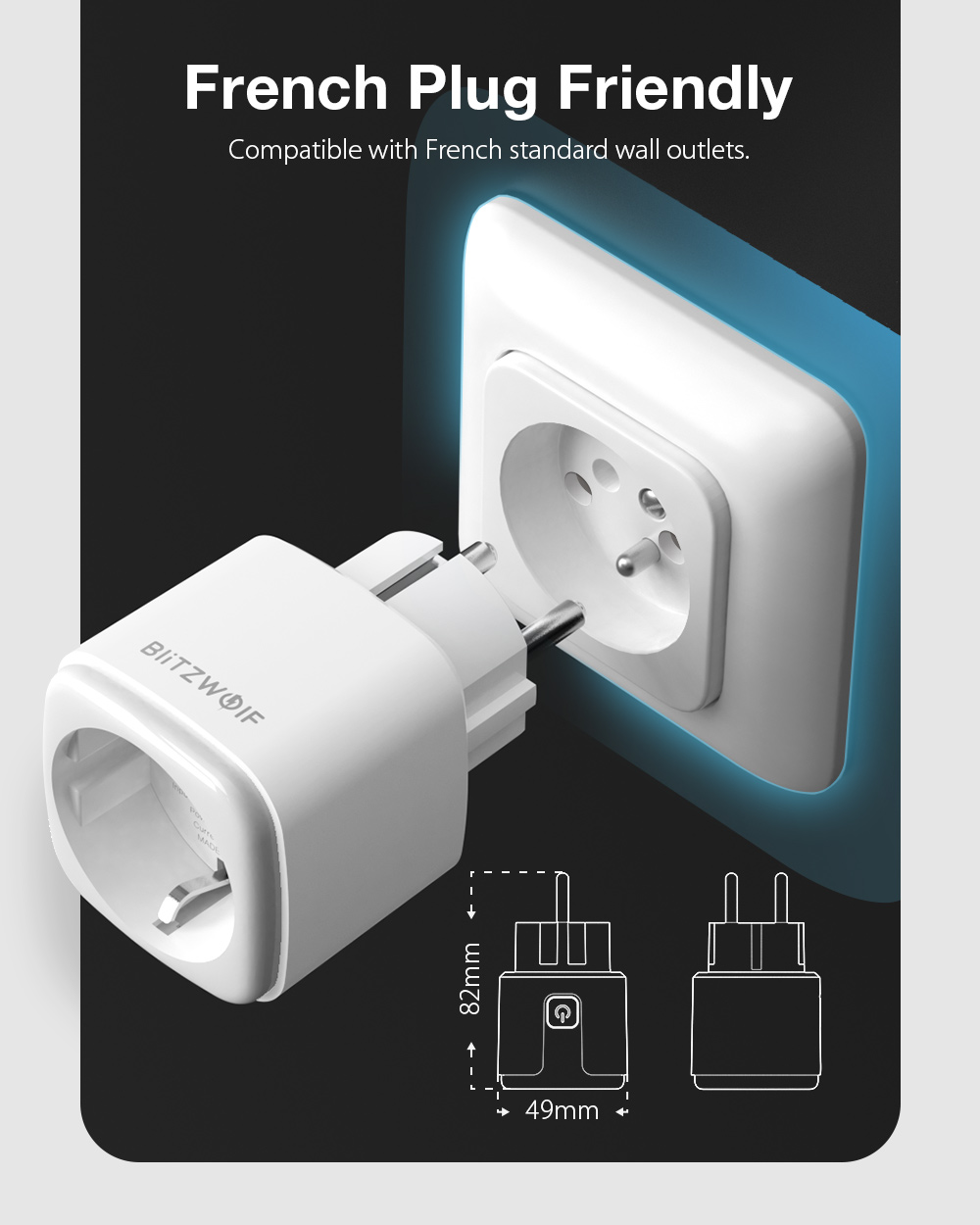

Product Size:	494982mm

Details

In stock. Delivery: 3-9 days - depend on your country.

32 €

Details

Install the Blitzwolf® BW-SHP15 smart socket in 6 easy steps:

1. Download the BlitzWolf app to your phone, be it Android or iOS and select the "Add Devices" button in the top right corner and if you don't already have one, add a ZigBee 3.0 gateway.
2. Insert the BW-SHP15 into the mains socket.
3. Press and hold the on / off switch on the BW-SHP15 for 5 seconds. (LED starts flashing quickly)
4. Select and enter the password for your home wireless network.
5. Rename the device so that if you have multiple smart home devices, you can easily recognize it.
6. Press the "Done" button and schedule or create rules as needed to work with your other devices.

That's not all:

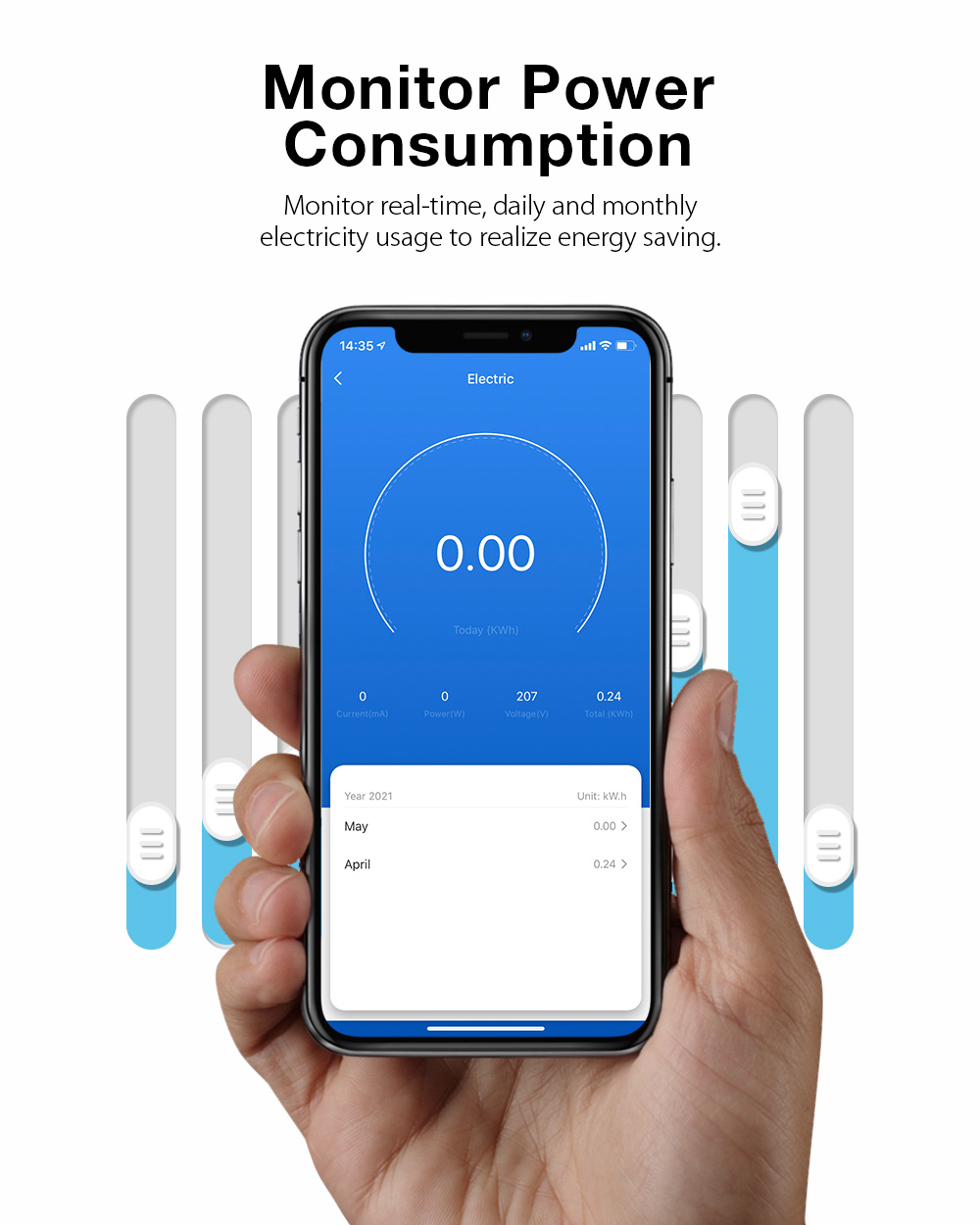

Consumer meter in Smart Life: Track your device's current and last-minute consumption.

It also works with Google Assistant and Amazon Alexa. Its use is almost infinite. Here's a Google Smart home tutorial

BlitzWolf BW-SHP15 ZigBee 3.0 Smart Socket

Info

Delivery:

Warranty:

Manufacturer:

Blitwzolf

shipping:

790

GTIN:

5999571640331

Opinions

Average rating:

4 (1 opinion)

(0)

(1)

(0)

Find you review this product?

Review

marinus

14/05/2023

The Blitzwolf BW-SHP15 is an earthed intermediate plug based on the Zigbee protocol, made of white plastic and has an illuminated on/off button and can handle up to 16 amps.
The intermediate plug is not very large, but 2 next to each other on a socket is just not possible.
In addition to switching a connected device on or off, the intermediate plug can also measure the following: current and total consumption, voltage and current.
The readings for voltage and current are not accurate but acceptable (a few % difference).

Installation via Zigbee2MQTT is simple.
In the Zigbee2MQTT dashboard, the total consumption is only visible for the first time after a connected device consumes power and this has been reported.
The intermediate plug has child protection.

In Home Assistant, some entities are not immediately visible but are either hidden or disabled. Requires an action to make it visible / enable it.
By default, new values are passed every 60 seconds. If that is too slow, the polling frequency can be adjusted in Zigbee2MQTT via measurement_poll_interval.

The only downside when using Home Assistant (without a Blitzwolf or Tuya hub) is that the total consumption cannot be reset (other than by resetting the intermediate plug itself and pairing and setting it again). Method indicated on the internet via Dev console does not work.
Updating the firmware is also not possible within Home Assistant.

The user manual lacks information on how to reset the adapter.
Also the settings of Indicator_mode and Power Outage Memory are not explained.
Too bad, it's taking some time to figure it out now.

Excellent intermediate plug to visualize the energy consumption of a connected device and/or to automate that device.
