Smart, WiFi thermostat. Suitable for most gas boilers sold in Europe - with integrated LCD display

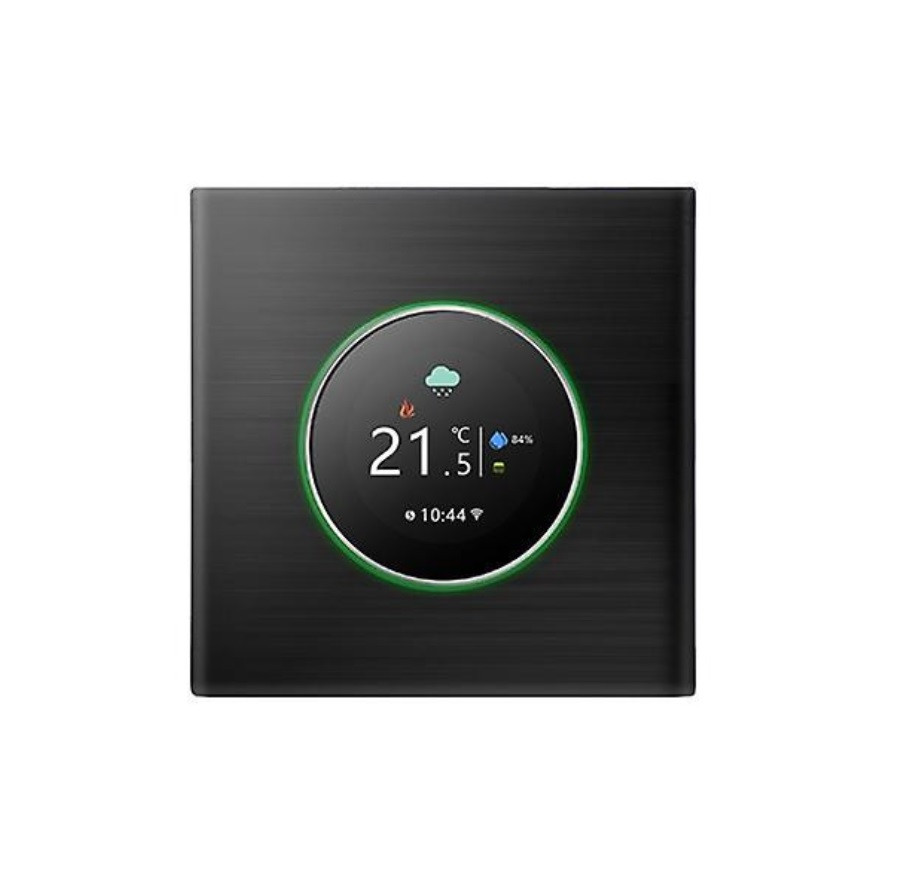

The thermostat has an LCD display, so you can monitor and adjust the temperature and heating status not only in the application, but also on its display.
Material use and appearance

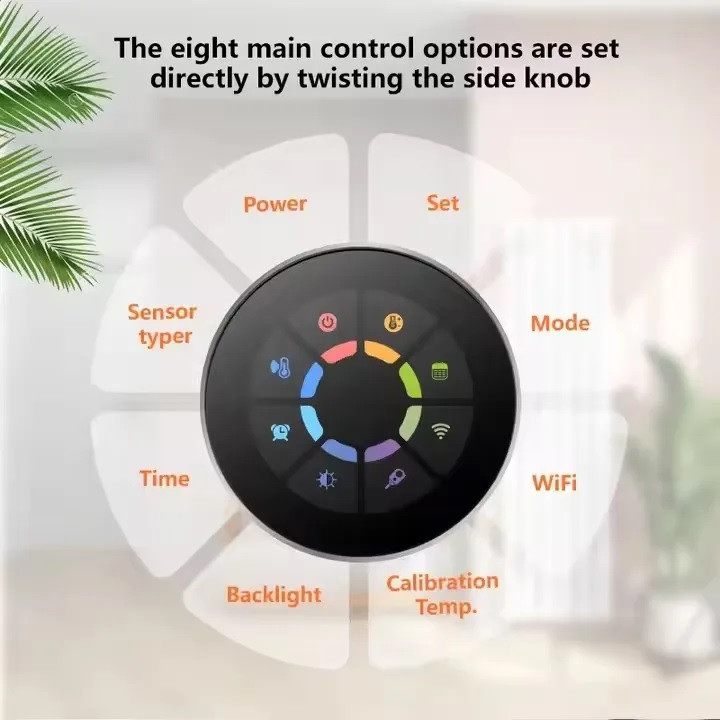

The RSH® TM021 is not only useful, but thanks to the aluminum casing, crystal clear LCD display, LED lights, it also looks good in any room! Its special feature is the large button that can be turned, pressed, while displaying all information.
Connection
1. Connect the thermostat to the electrical network, with a phase and neutral wire.
2. Connect the two control wires of the thermostat to the potential-free contact input of the boiler (e.g. T1 and T2, or NO and COM points).
When the thermostat is turned on (when the switch is closed), the gas boiler starts, and when it is turned off (when the switch is opened), it stops.
LCD Touch Screen
The smart thermostat has a stylish, sensitive LCD touch screen, scratch-resistant, easy to clean.
App Control
Whether you are at home or on the go, you can remotely control your home heating with the Smart Life or TuyaSmart app from your phone or tablet, based on IOS and Android. It works with a 2.4 GHz Wi-Fi network only. No hub is required for operation.
Voice Control
The thermostat works perfectly with Amazon Alexa and Google Assistant. Simply give voice commands to turn it on/off or set the appropriate temperature when you are on the go.
Settings
7-day programmable mode: which can be set to 5+2, 6+1 and 7 days to suit all your needs.
Calibration: calibrate the current temperature according to your needs
Switch: you can set the difference in °C between when the thermostat turns on and off.
Max. min. temperature: You can set the maximum and minimum °C to which the temperature can be adjusted
Power saving
With this smart thermostat, you can save around 20% on your heating costs every year.
Child lock
Prevent children from accidentally touching it, so you can avoid unnecessary losses.
Sharing function
You can share all Tuya series devices with your family members, so you can manage your home together.

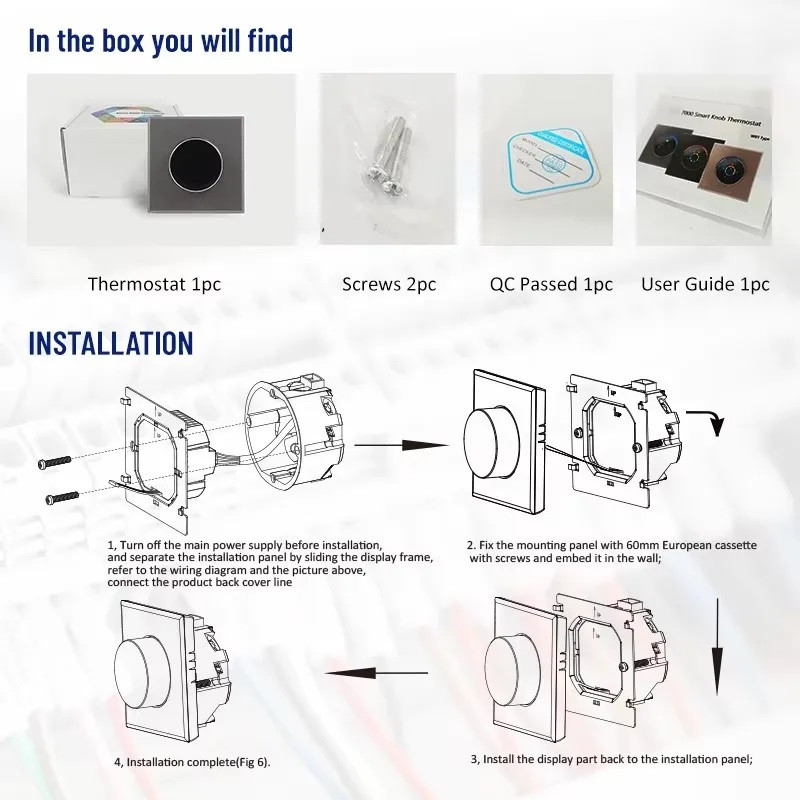

Install the RSH® TM021 Smart thermostat in a few simple steps
1. Download the Blitzwolf / Smartlife / Tuya app to your phone, be it Android or IOS, and install it.
2. Swipe in the app in the upper right corner and add the "Thermostat" device.
3. Press the square icon of the clock and dots on the thermostat.
4. Tap the "Confirm" button.
5. Select and enter the password of your home wireless network (2.4GHz).
6. Wait a few seconds.
7. Press the "Completed" button, time it as needed, or create rules so that it works with your other devices.
