RSH® SC05 Smart Knob remote - Smart knob for controlling any SMART device - with ZigBee control
Smart Home remote control
With this universal Smart button, you can control any of your smart devices or perform predetermined actions with it. Thanks to its battery operation, you can place it anywhere, there is no wiring, you can use it immediately.
Attention! It can only be connected to a ZigBee gateway from a certain manufacturer (e.g. ZigBee 3.0 Gateway - RSH TYZW-022N)!
| Warranty: | 18 months |
| Color: | Anthracite & grey |
| Compatibility: | Android and IOS |
| Compatible Application: | BlitzWolf / Tuya / Smart Life |
| Standard: | ZigBee |
| Power source: | CR2032 3V DC |
| Range: | 50 m |
| Size: | Φ40 x 25.6mm |
| Weight: | 70g |
| Contents of the package: | RSH® SC05 Smart Knob Remote Control, User Guide |
RSH® SC05 Smart Knob - You can control all devices installed in BlitzWolf / Tuya / Smart Life or start a "smart sence".

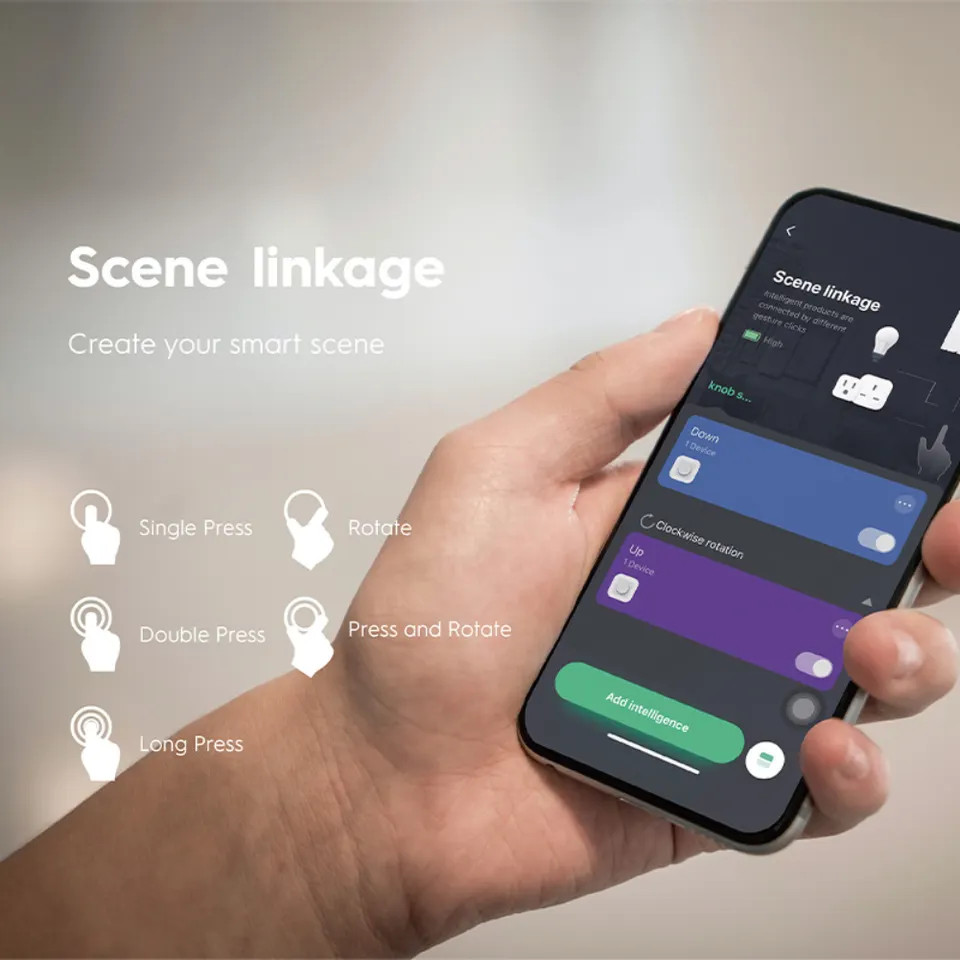

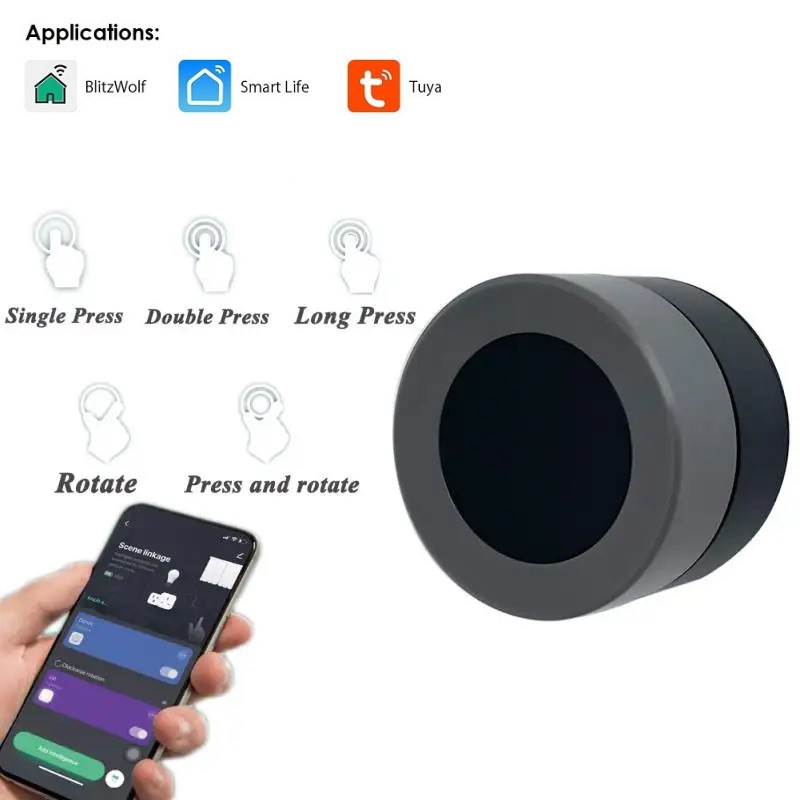

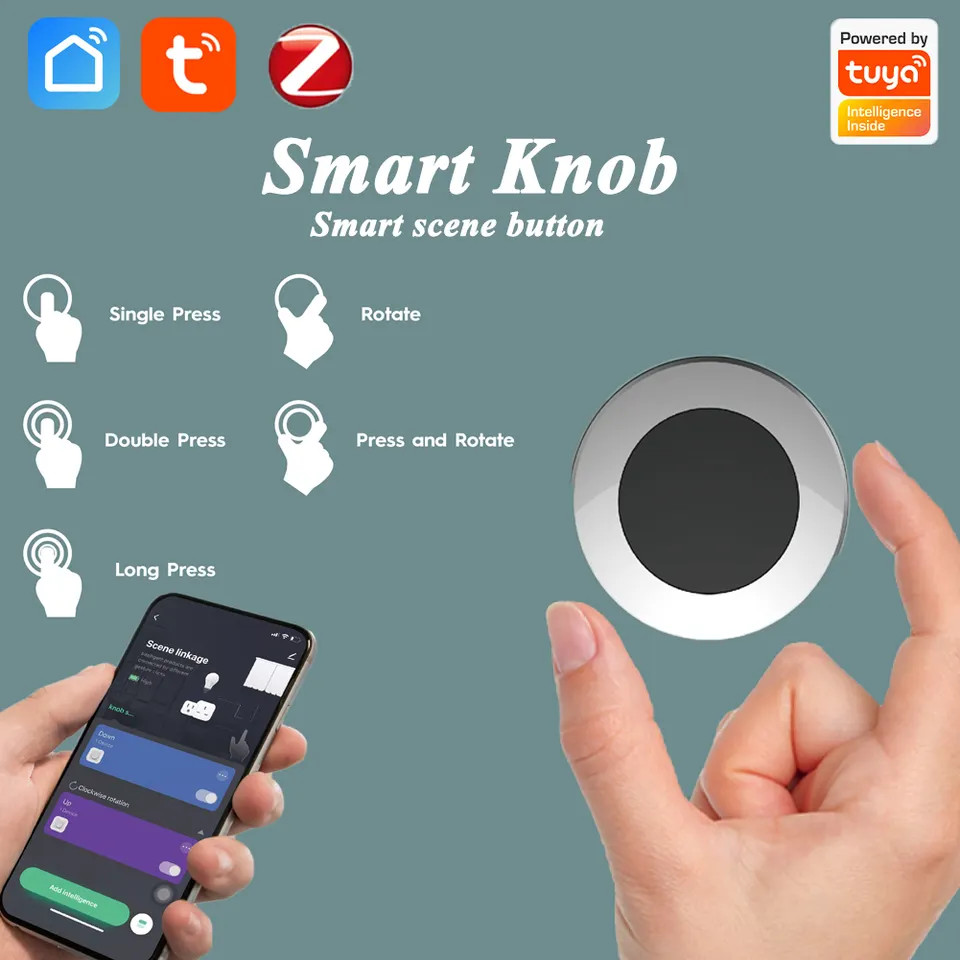

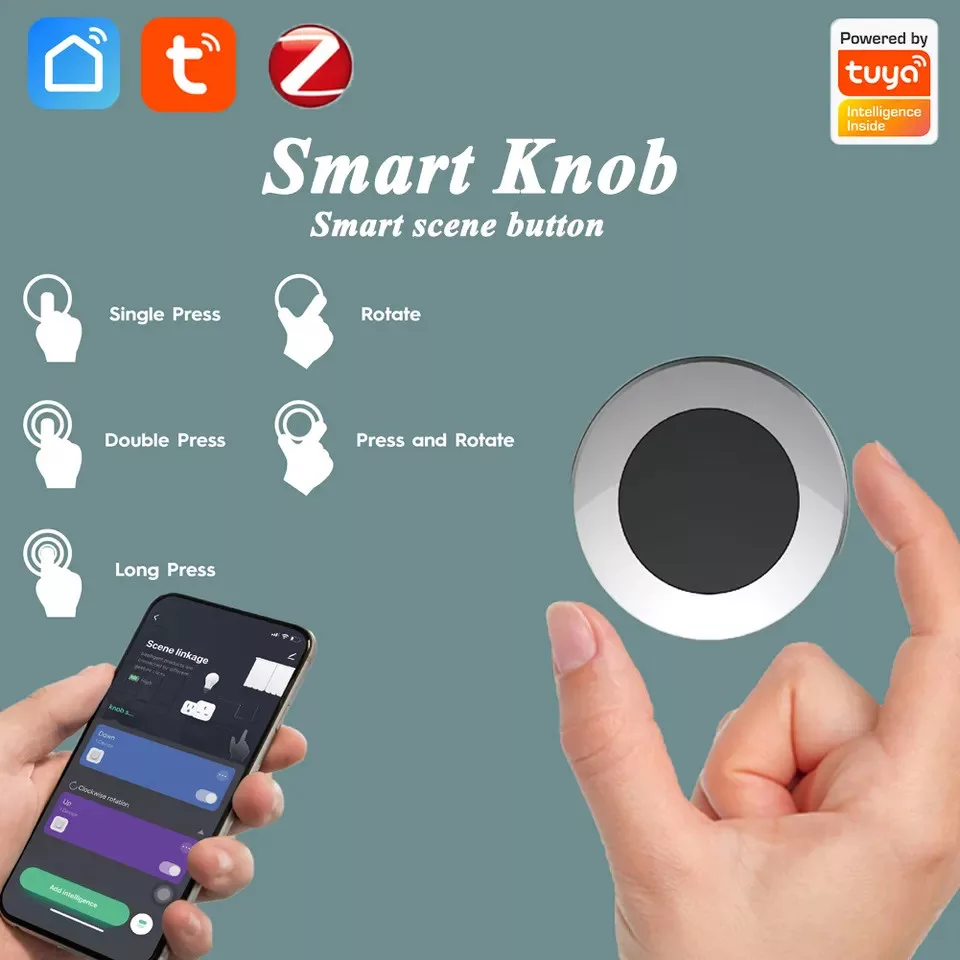

You can press your Smart Knob in five different ways, so you can control 5 different functions with it:
- Single click
- Double click
- Long click
- Rotation to the right
- Rotation to the left
If you connect it to a smart lamp and do not make any other settings, this smart button functions automatically as on/off and brightness adjustment.

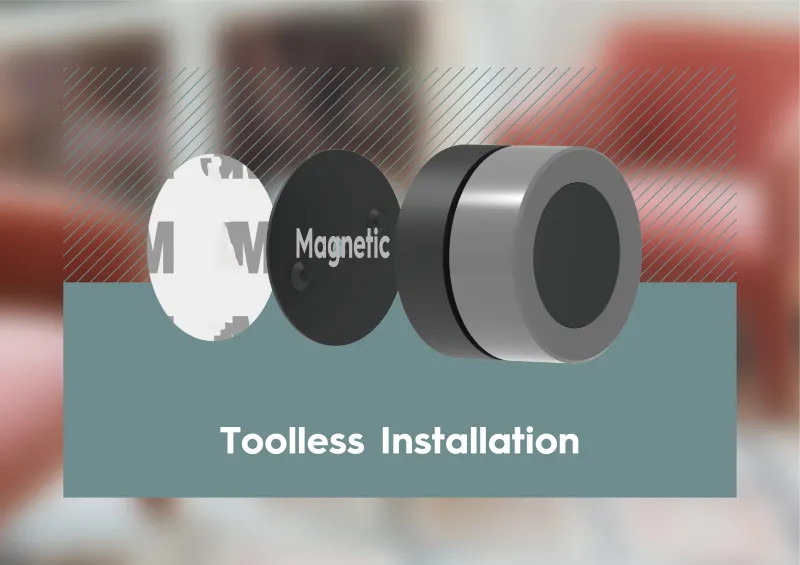

For easy storage, it has a magnetic back and you will also find a 3M adhesive strip in the package.
You can use it to control music playback, change the color of the lighting, or drag the dimmer, or activate a group task, in short, really control all your smart devices.......
Install the RSH® ZigBee SC05 Smart Knob - Smart Home remote control in a few simple steps
1. Download the Blitzwolf / Smartlife / Tuya app to your phone, be it Android or IOS, and install your ZigBee Gateway, e.g. this: TUYA ZIGBEE 3.0 - ZigBee 3.0 Gateway - RSH TYZW-022N.
2. Press the reset button on the device. (hold down the button for 6 seconds)
3. Open the gateway and press the "Add sub device" button and select the device.
4. Tap the "Confirm" button.
5. Select and enter the password of your home wireless network.
6. Wait a few seconds.
7. Press the "Completed" button, add the device you want to control or a group command (sence) as needed, or create rules to cooperate with any of your devices.
It also works with Google Assistant and Amazon Alexa. Its field of use is almost endless. Here is a Google Smart home presentation:
