KCvents VT501 SMART – Single-Room Ceramic Heat Recovery Ventilation Unit
Overview
The KCvents VT501 SMART is a modern, decentralized, single-room heat recovery ventilation unit, ideal for apartments, houses, holiday homes, and smaller commercial spaces. This device combines the latest technologies to continuously provide fresh air in the room while operating energy-efficiently, achieving up to 90% heat recovery efficiency.
Key Features

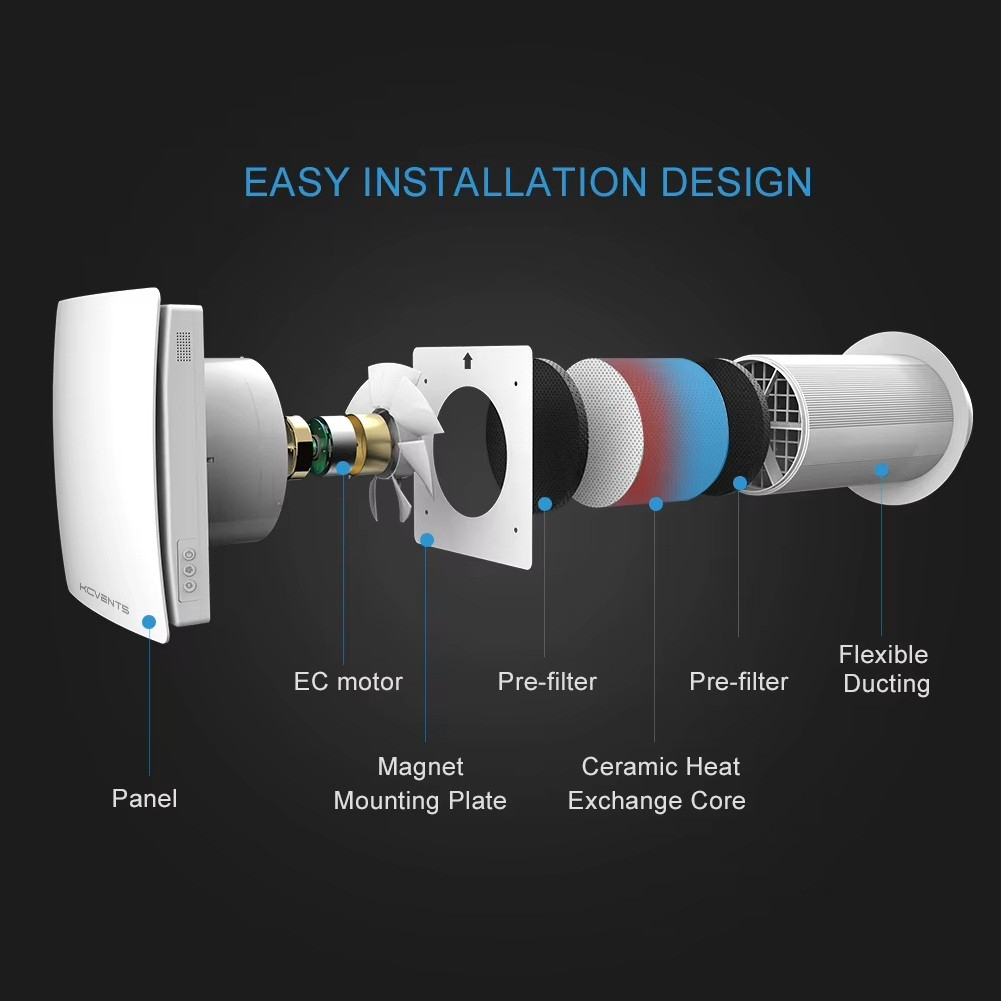

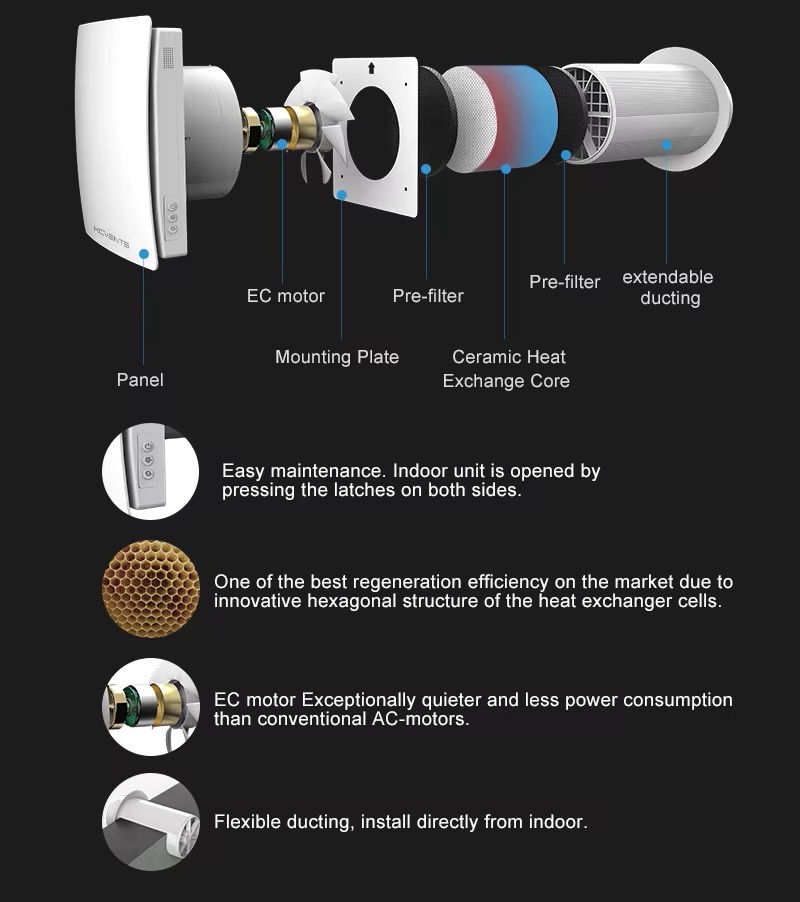

- Efficient Heat Recovery: Using a ceramic heat exchanger, the unit recovers up to 90% of the heat from the extracted air, resulting in significant energy savings.

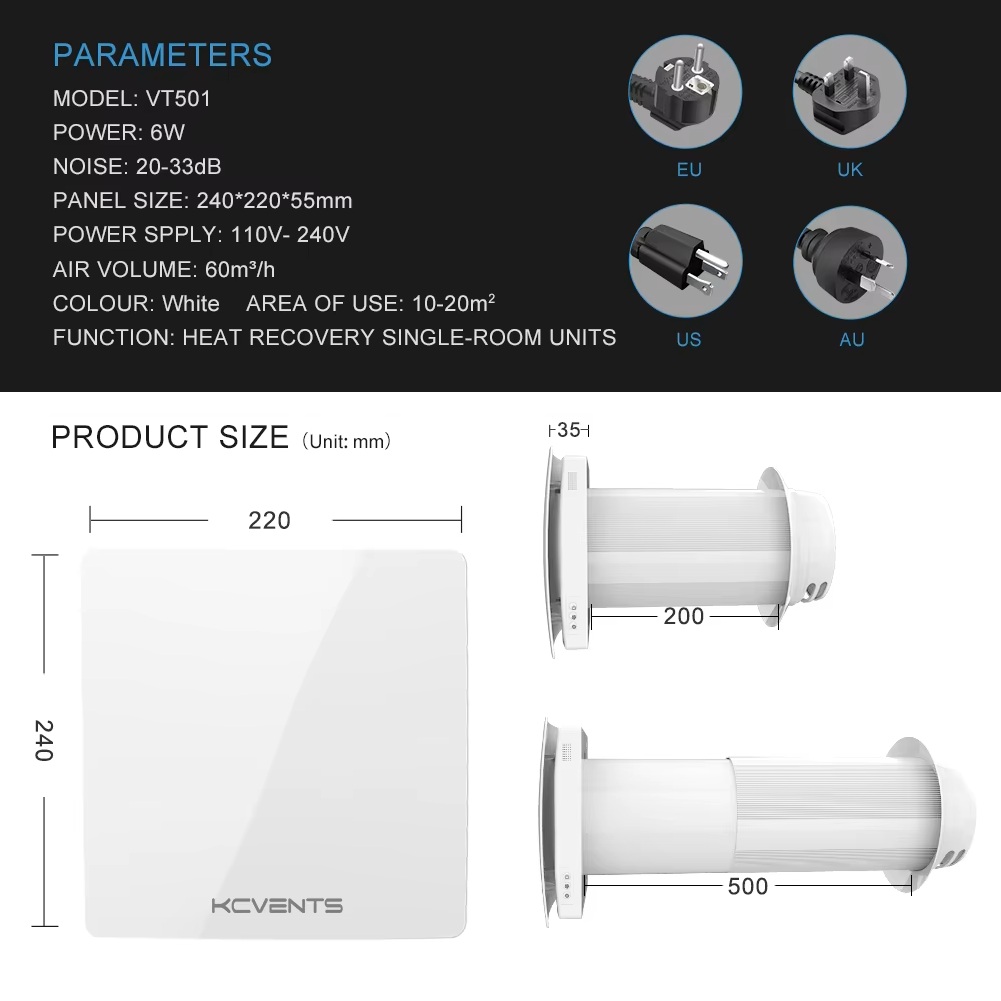

- Maximum Airflow: Provides up to 60 m³/hour air exchange, making it perfect for ventilating a single room.

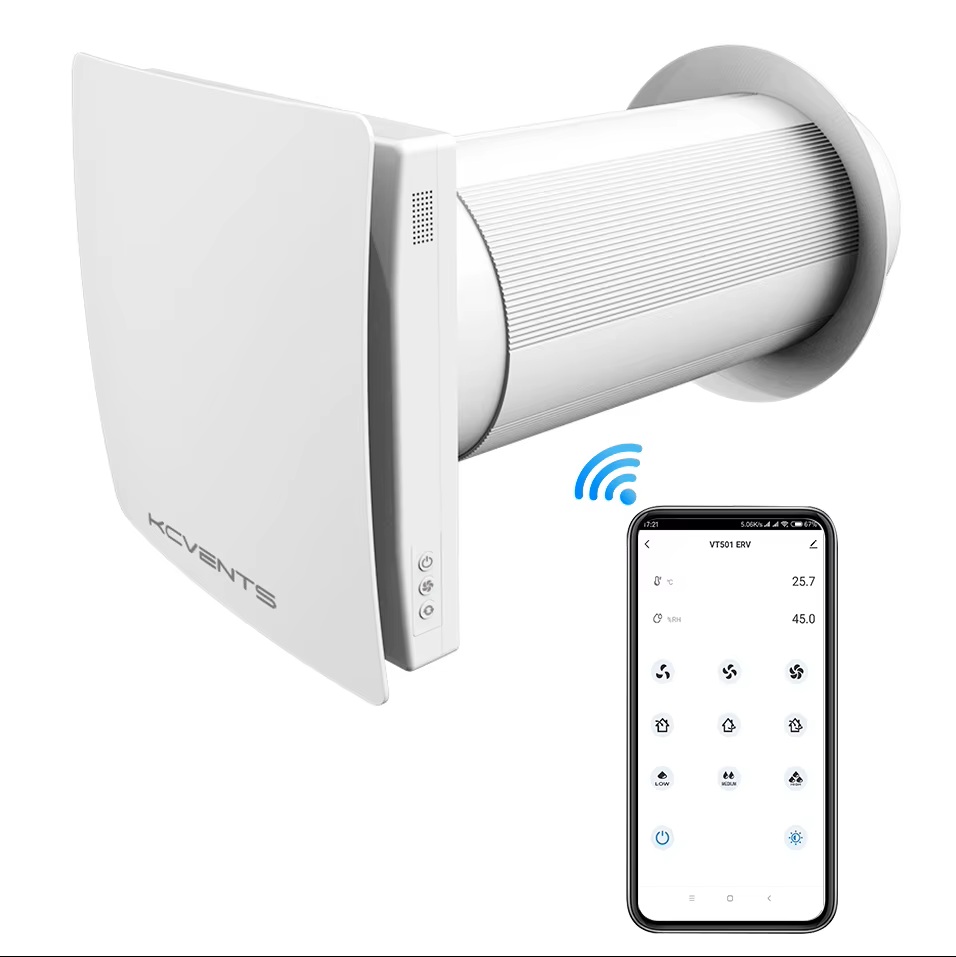

- App Control: Can be controlled via a smartphone app over Wi-Fi, allowing regulation of air exchange and humidity, as well as monitoring external humidity.

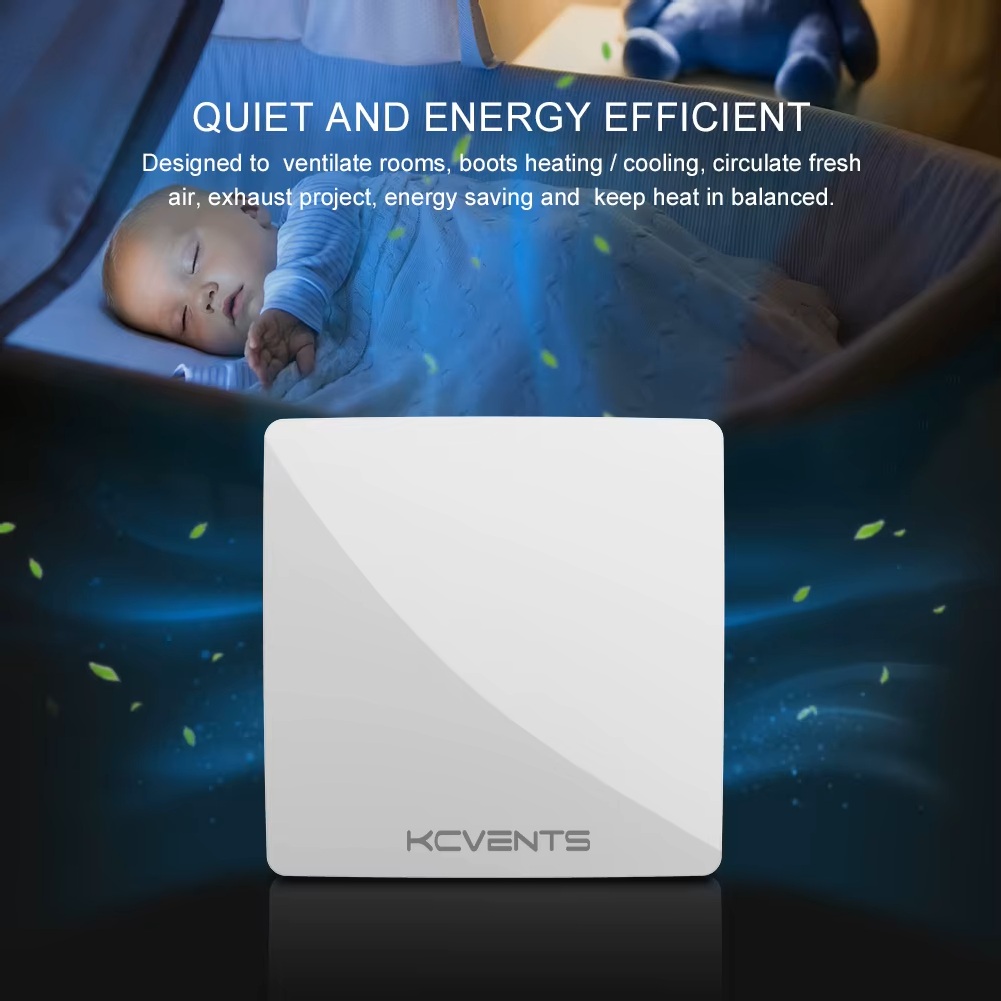

- Quiet Operation: Equipped with a high-performance brushless motor and designed for wall mounting, the noise level does not exceed 30 dB, ensuring it does not disturb the peace.
- Energy Efficient: Minimum power consumption is 2W, maximum 6W, ensuring low energy use.
- Three Ventilation Modes: Fresh air mode, exhaust mode, and cyclic mode, easily switchable via remote control or app.
- Filter System: Effectively reduces pollen, dust, radon, CO2, and prevents condensation and moisture buildup.
Operating Principle

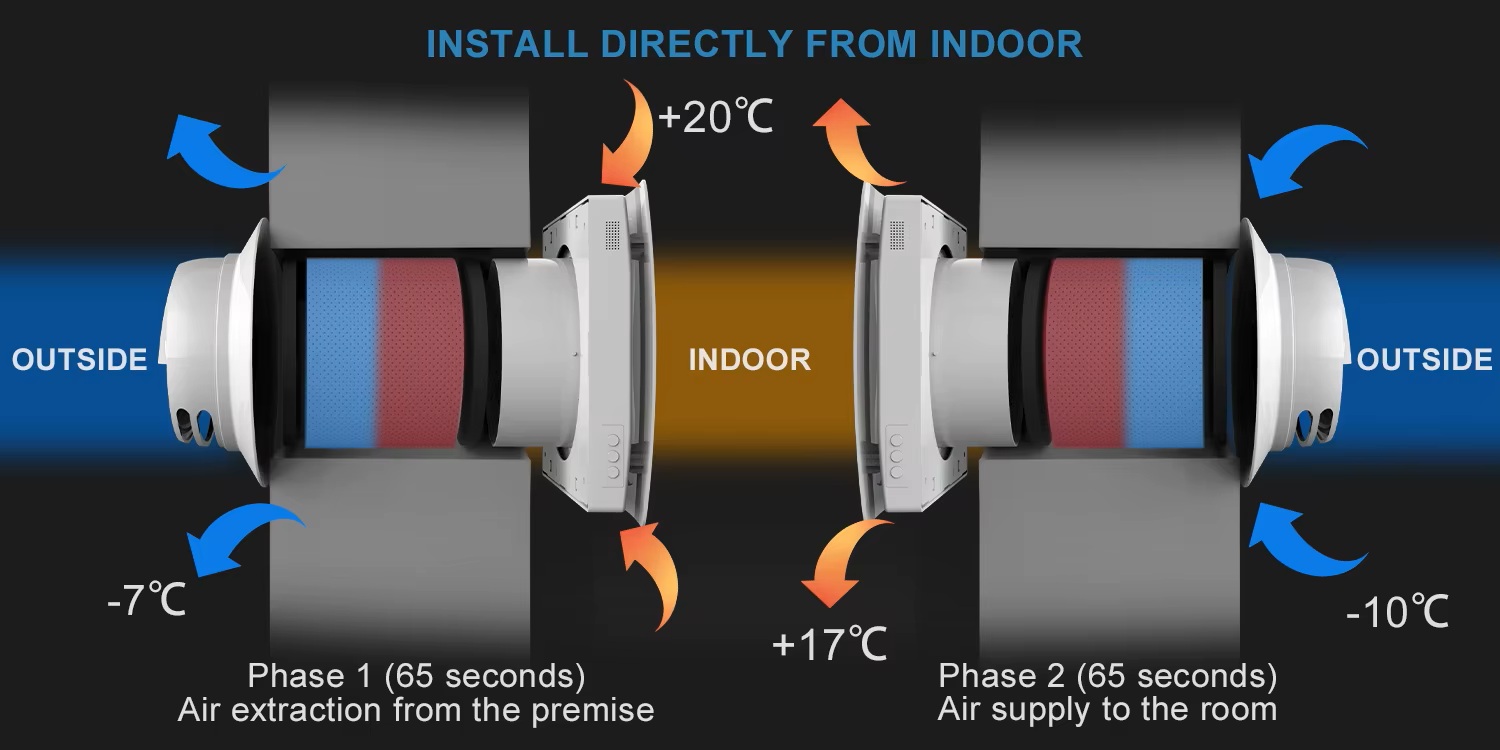

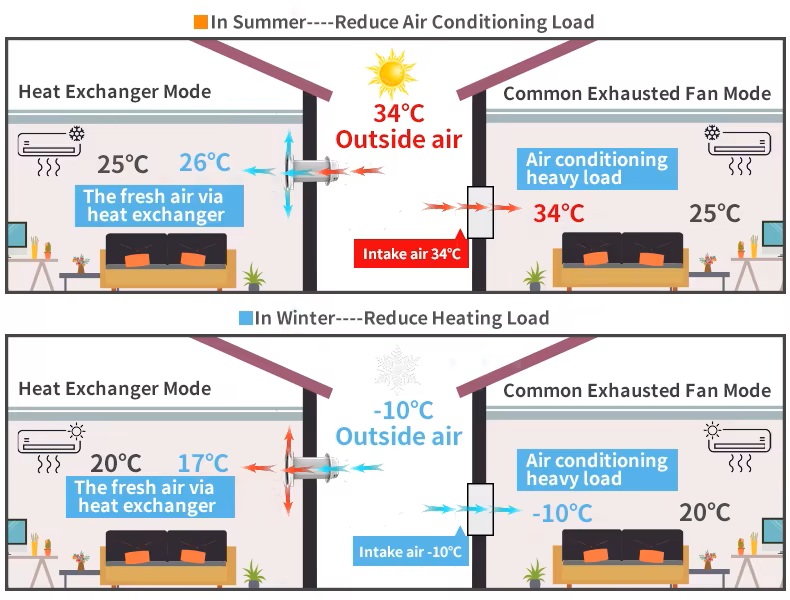

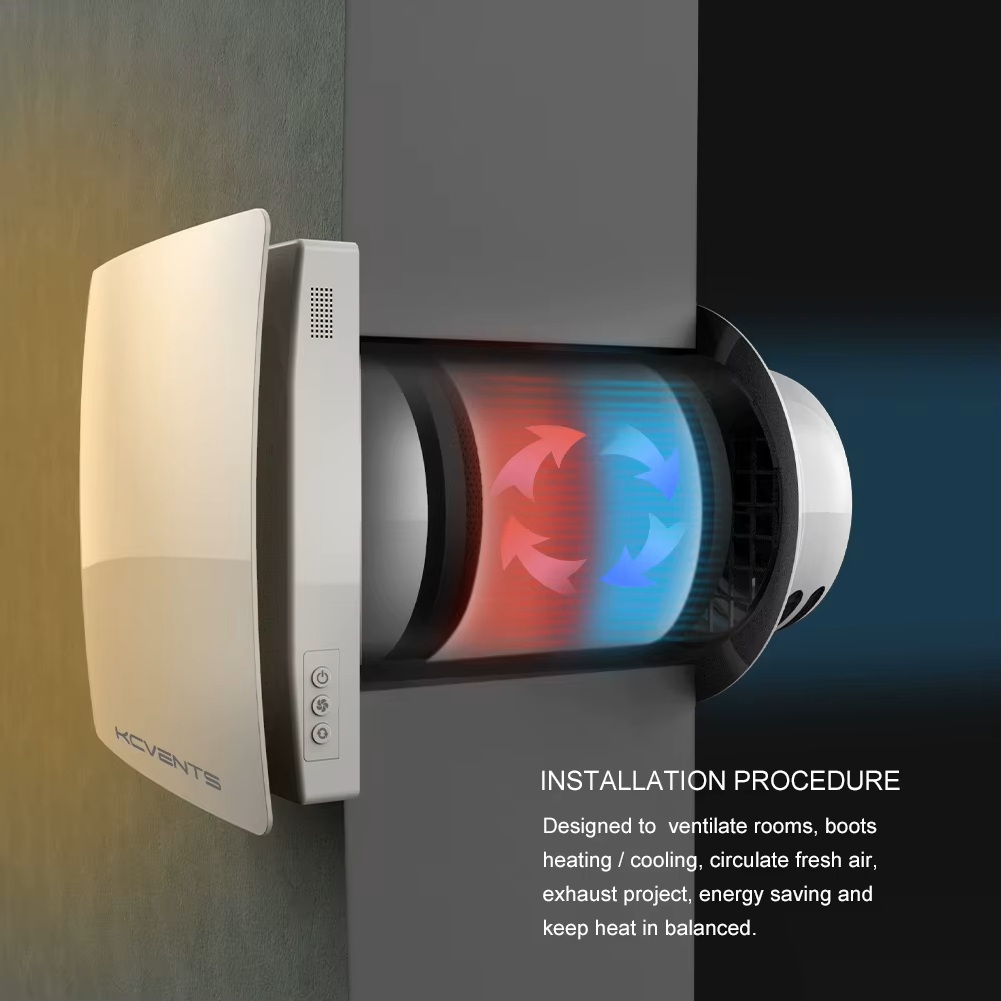

The KCvents VT501 SMART is a decentralized heat recovery ventilation system that refreshes the air in a single room. In the first step, the device extracts used, humid, polluted air from the room (for about 30 seconds), simultaneously "heating" the special ceramic heat exchanger, then the motor turns and sucks in fresh, external air, to which the ceramic heat exchanger transfers the stored heat.

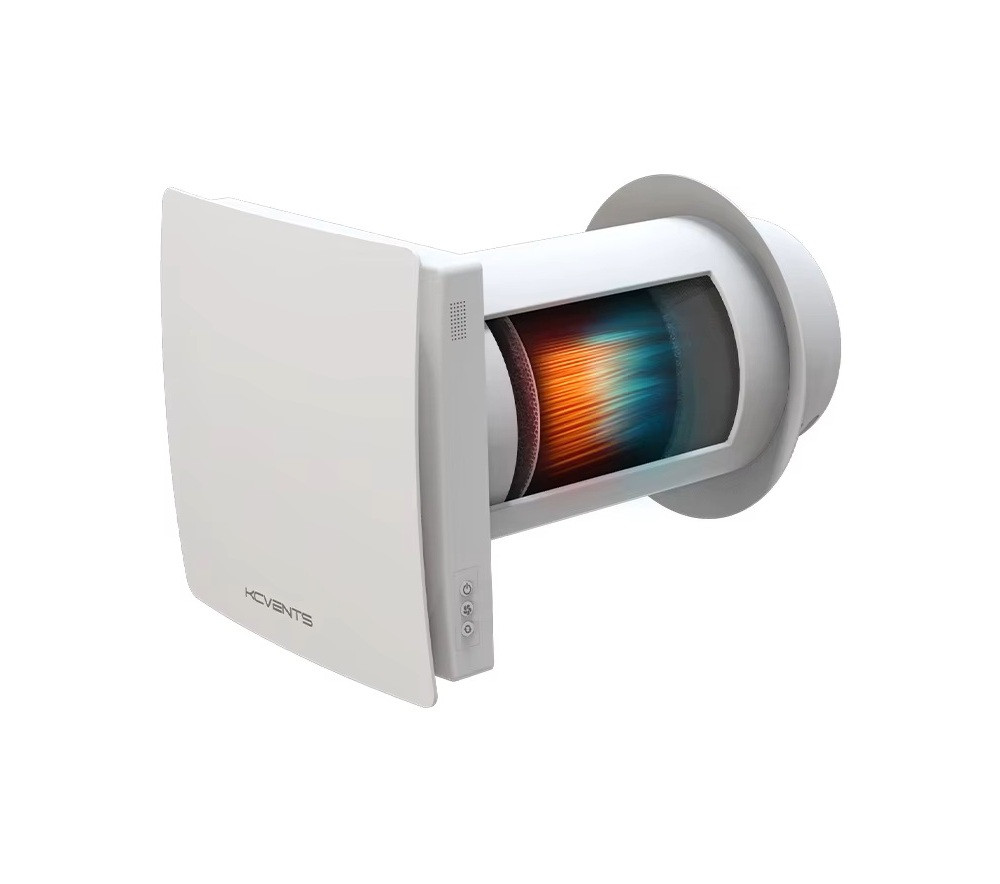

The ceramic heat exchanger transmits the thermal energy of the extracted air to the incoming fresh air, so that most of the heating energy of the room (90%) is retained and no heat is lost during ventilation. This process helps prevent the formation of mold and rot and ensures a healthy indoor climate.
Two Units Working Together
When using two KCvents VT501 units, their operation can be synchronized so that one intakes while the other exhausts, and vice versa. Placing the two units on opposite walls of the room can further optimize air exchange conditions.
Health Benefits
Continuous fresh air supply in the room has numerous positive effects on health and well-being:
- Improves air quality by reducing carbon dioxide and harmful substances, providing fresher, oxygen-rich air.
- Reduces mold and allergen formation by preventing excessive humidity, which is especially important for allergy and asthma sufferers.
- Enhances concentration and well-being by improving oxygen supply, boosting mental performance, and reducing fatigue.
- Helps prevent respiratory diseases by maintaining healthy airways.
Humidity Control via App
The KCvents VT501 SMART app enables intelligent humidity control in the room. It displays the external humidity percentage for the location where the device operates. Based on this, the unit can increase or decrease air exchange to achieve optimal indoor humidity, avoiding discomfort caused by overly dry or humid air and enhancing comfort.
Operation
The KCvents VT501 is designed for continuous operation and should never be turned off (except during cleaning) to avoid dust entering the bearings. Adjust the fan speed if more or less airflow is needed.
Package Contents and Warranty
- HRV fan unit x1

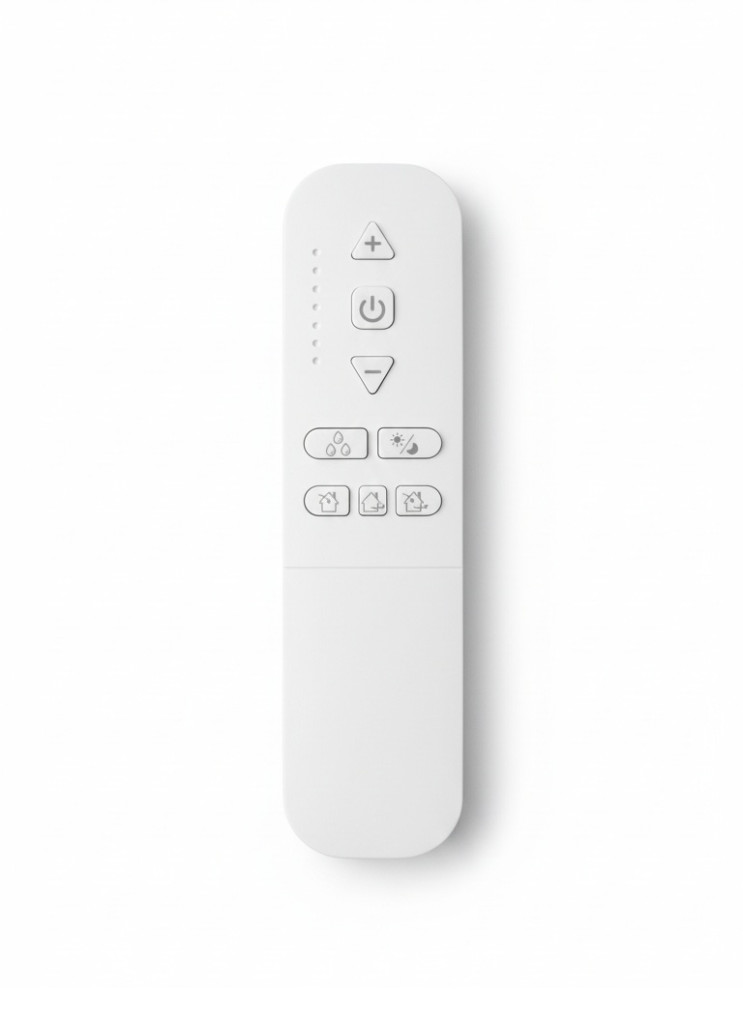

- Remote control x1
- Mounting kit x1
- User manual x1
- 36 months warranty

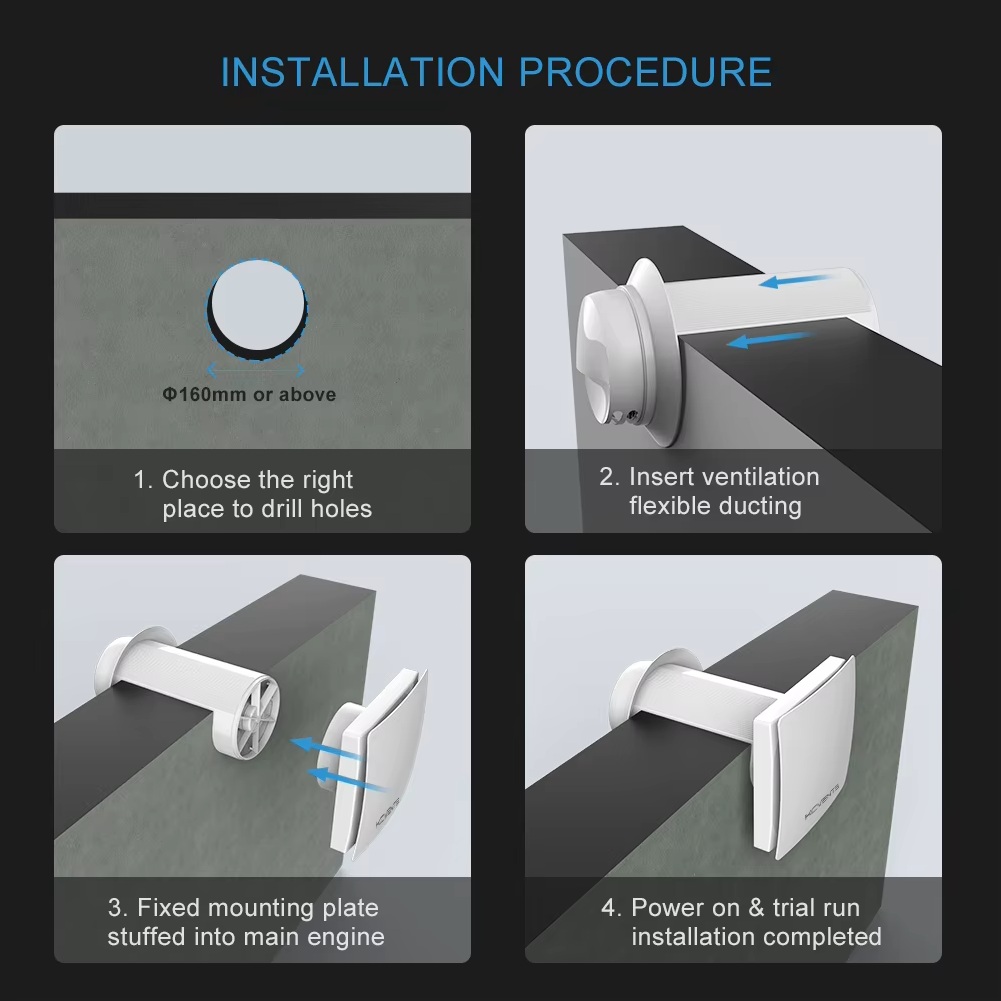

Installation in 6 Simple Steps:
- Download the Tuya / Smart Life app on your Android or iOS phone and select the "Add Devices" button in the top right corner.
- Connect and power on the KCvents VT501.
- Press and hold the switch for 5 seconds (the LED will start blinking rapidly).
- Tap the + sign in the top right corner, select the device, and enter your home Wi-Fi password.
- Rename the device if you have multiple smart home gadgets for easy identification.
- Press "Done" and schedule or create rules for integration with other devices as needed.
The KCvents VT501 SMART is an excellent choice for those who cannot install a central ventilation system but want efficient, energy-saving, and healthy ventilation while enjoying the benefits of modern smart home systems. This unit not only improves air quality but also contributes to energy savings and the health of the occupants.
