Blitzwolf BW-TH13 USB Hub 18 in one: M.2 SSD, 3 motor support, 4K HDMI, USB 3.0 5Gbps, SD card reader, 3.5 Jack, LAN port - Display port
Blitzwolf BW-TH13 USB Hub 18 in one: M.2 SSD, 3 motor support, 4K HDMI, USB 3.0 5Gbps, SD card reader, 3.5 Jack, LAN port - Display port
123

Blitzwolf BW-TH13 USB Hub 18 in one: M.2 SSD, 3 motor support, 4K HDMI, USB 3.0 5Gbps, SD card reader, 3.5 Jack, LAN port - Display port

Guarantee 18 months
Model BW-TH13
Color Silver
Size 123 x 60 x 58mm
M.2 SATA 3.0 NGFF SSD 5Gbps transfer rate, max 2TB
USB Type-C speed 5Gbps
Interfaces (DP version) M.2 SATA 3.0 NGFF SSD Enclosure * 1, USB2.0 * 2, USB3.0 * 3, DP * 1, HDMI * 3, RJ45 * 1, USB-C PD3.0 * 1, USB-C Data Transfer * 1, 3.5mm Audio port * 1, SD Card Reader * 1, TF Card Reader * 1, USB-C 1 (Host 1) * 1, USB-C 2 (Host 2) * 1
RJ45 network transmission 1000Mbps
USB Type-C PD3.0 power supply (for transmission) 100W
HDMI 1 interface resolution HDMI 1 Interface Resolution : 4K @ 60Hz
HDM1 2 Interface Resolution : 4K @ 30Hz
HDM1 3 Interface Resolution : 4K @ 30Hz
DP interface resolution 4K @ 30Hz
Compatible operating system MAC OS, Windows



In stock - Delivery in 2-4 days (depend on your country)
123
Details

Don't have enough interface on your laptop? Don't have enough space? No problem! Plug your USB Type C charger into the BlitzWolf BW-TH13, the TH13 Type-C port into your laptop and read data from the pen driver, built-in SSD while charging, or send a video signal to up to 3 monitors on the HDMI and Display ports.



18 in 1 USB Hub
When connected to 1 Type-C USB3.0 port, you get 18 outputs / functions.


M.2.SATA 3.0 NGFF
To BW-TH13 1x max. You can load a 2TB SSD, which you can access from your laptop at SATA 3.0 speeds, so that you never run out of space on your computer and access them at the speed of being on your local machine.
Supported SSD sizes:
22 x 30mm; 22 x 42mm; 22 x 60mm; 22 x 80mm




4K HDMI / DP outputs on Windows and Macbook systems on up to 3 monitors simultaneously:

Mirrored mode:

Version 1: HDMI1 (4K @ 60Hz)
Version 2: HDMI2 (4K @ 30Hz) / HDMI3 (4K @ 30Hz) / DP (4K @ 30Hz)



Extended mode:
Version 1: HDMI1 (4K @ 60Hz)
Version 2: HDMI2 (4K @ 30Hz) / HDMI3 (4K @ 30Hz) / DP (4K @ 30Hz)


Warning:
On Windows, DP1.4 and RTX2060 (and later) video cards support the display of 3 screens at a time.



SD / TF card reader
Read data directly from your SD card and forward it to another USB port at the same time.


PD (Power Delivery) charging
Plug the charger of your laptop into the TH13 and the cable of the TH13 Type-C into your machine. Charging and 18 outputs go through this single cable.


3x 5 Gbps USB 3.0 and 2x USB 2.0 transfer
Supports super-speed data transfer between a USB 3.0 compatible host and device.


RJ45 port

1Gb LAN port.


3.5 mm Jack port
You can even listen to music on the Jack port on the Bltitwolf BW-TH13



Dual charge input:
DC port: TH13 charging (use the included charger) This charger only serves the energy of the TH13, (approx. 10W) ​​you cannot charge your laptop with it.

USB-C / PD 3.0: transfers the charge to your laptop for max. With 100W. Use the charger for your laptop.

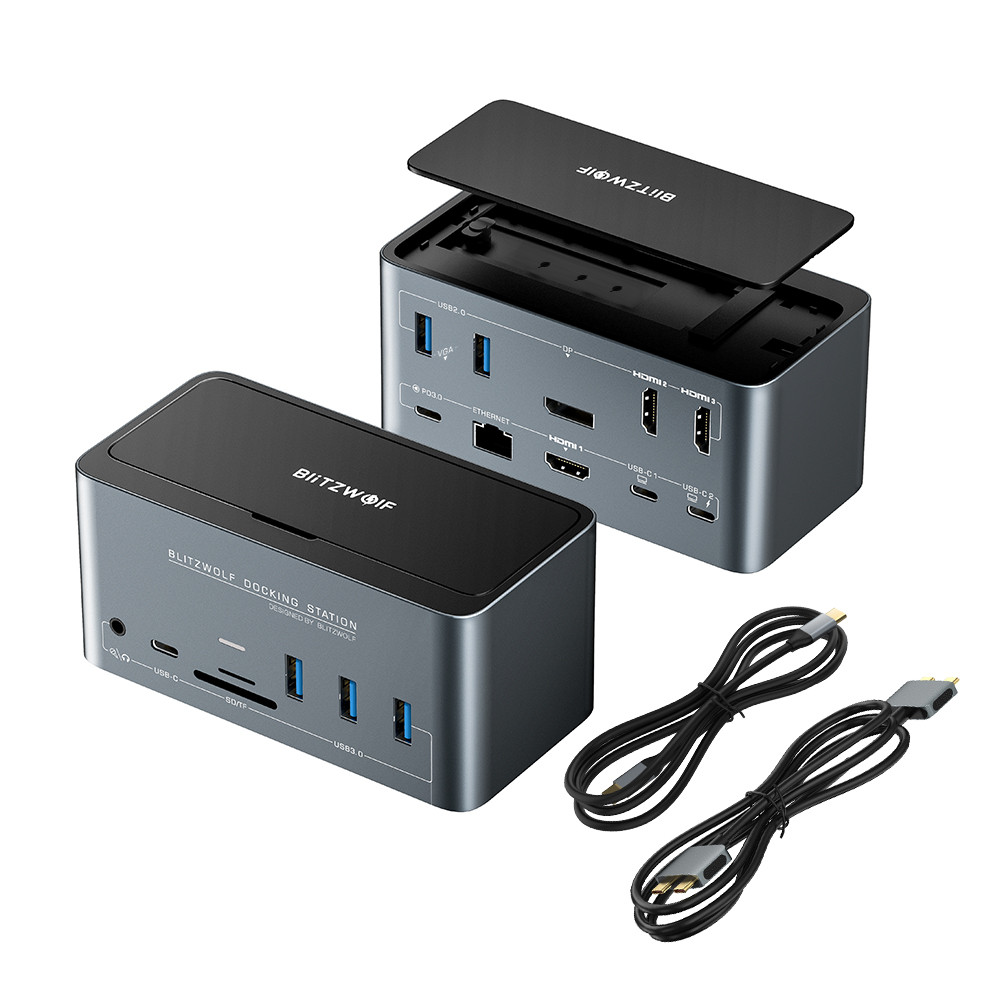

Blitzwolf BW-TH13 docking station, USB HUB

Info
Delivery:
1
Warranty:
18
Manufacturer:
Blitwzolf
shipping:
0
GTIN:
5999571643004
